02 - Control Panel
03 - Cooktop Parts
04 - Broiler Parts
05 - Door Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

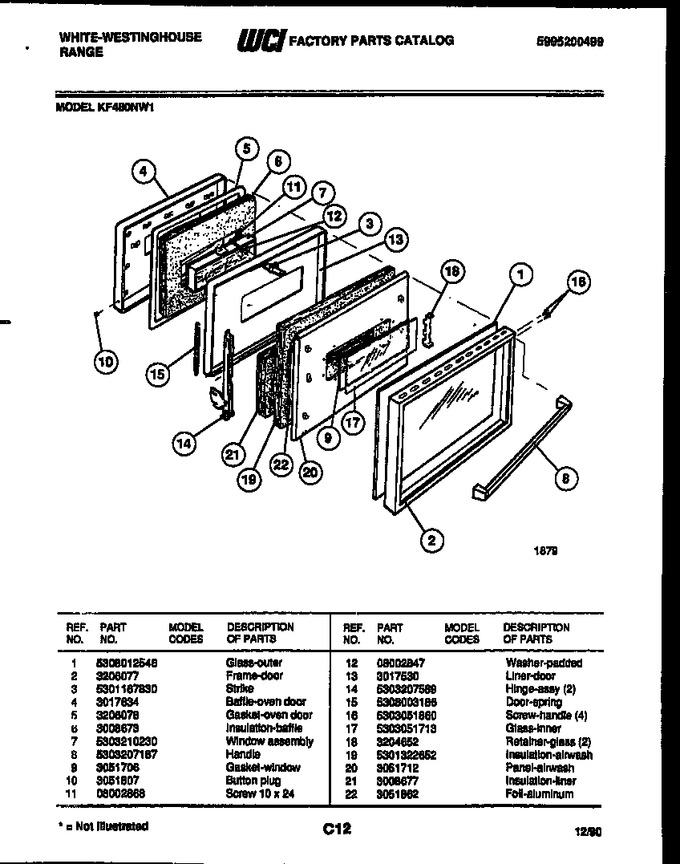

| 1 | 5308012546 | Glass, Outer |
|
- | |||||
| 2 | 3206077 | Frame, Door |
|
- | |||||
| 3 | 5301167830 | Strike |
|
- | |||||
| 4 | 3017634 | Baffle, Oven Door |
|
- | |||||
| 5 | 3206078 | Gasket, Oven Door |
|
- | |||||
| 6 | 3008673 | Insulation, Baffle |
|
- | |||||
| 7 | 5303210230 | Window-assembly |
|
- | |||||
| 8 | 5303207187 | Handle |
|
- | |||||
| 9 | 3051706 | Gasket, Window |
|
- | |||||
| 10 | 3051807 | Button Plug |
|
- | |||||
| 11 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| 12 | 08002847 | Washer-padded |
|
- | |||||
| 13 | 3017530 | Liner, Door |
|
- | |||||
| 14 | 5303207589 | Hinge, Assy (2) |
|
- | |||||
| 15 | 5308003186 | Door, Spring |
|
- | |||||
| 16 | 5303051860 | Screw, Handle (4) |
|
- | |||||
| 17 | 5303051713 | Glass, Inner |
|
- | |||||
| 18 | 3204652 | Retainer, Glass (2) |
|
- | |||||
| 19 | 5301322652 | Insulation, Airwash |
|
- | |||||
| 20 | 3051712 | Panel, Airwash |
|
- | |||||
| 21 | 3008677 | Insulation, Liner |
|
- | |||||
| 22 | 3051862 | Foil, Aluminum |
|
- |
