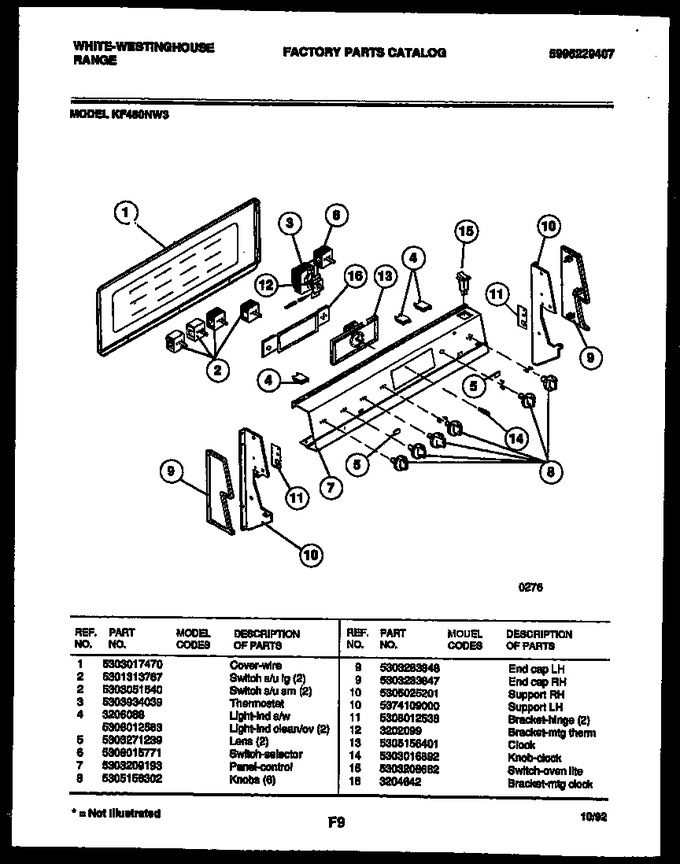

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5303934039 | Thermostat |
|
- | |||||
| 4 | 3206088 | Light-ind S/w |
|
- | |||||
| 5 | 5303271239 | Lens (2) |
|
- | |||||
| 6 | 5308015771 | Switch-selector |
|
- | |||||
| 7 | 5303209193 | Panel-control |
|
- | |||||
| 8 | 5305156302 | Knobs (6) |
|
- | |||||
| 9 | 5303283848 | End Cap, Lh |
|
- | |||||
| 9 | 5303283847 | End Cap, Rh |
|
- | |||||
| 10 | 5305025201 | Support Rh |
|
- | |||||
| 10 | 5374109000 | Support Lh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 3202099 | Bracket-mtg Therm |
|
- | |||||
| 13 | 5305156401 | Clock |
|
- | |||||
| 14 | 5303016892 | Knob-clock |
|
- | |||||
| 15 | 5303208662 | Switch-oven Lite |
|
- | |||||
| 16 | 3204642 | Bracket-mtg Clock |
|
- | |||||
| 4A | 5308012563 | Light - Ind Clean/ov (2) |
|
- |
