SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Supplemental Information


07 - Wiring Information

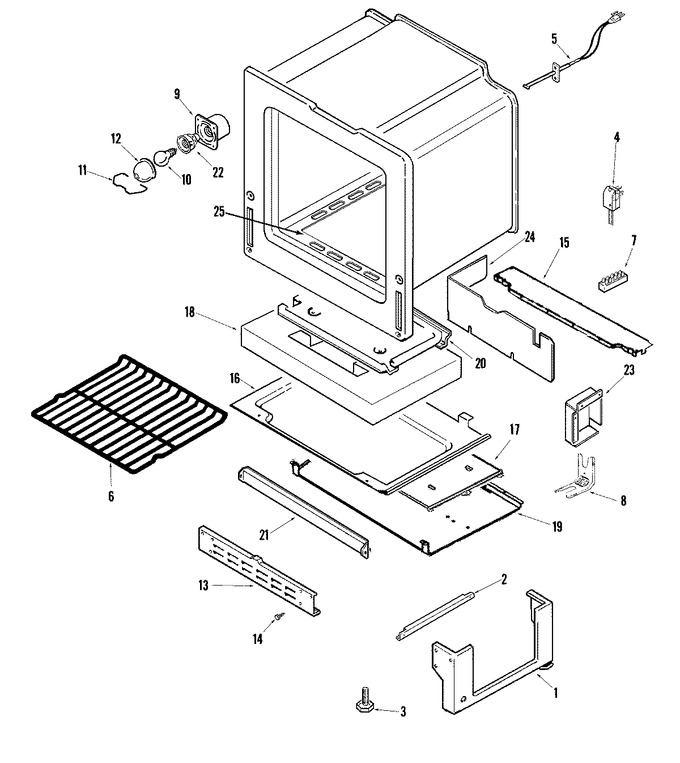

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005772		Pedestal, Side	10	Appelez-nous	-
2	74005230		Nut, Lock (8-32)	10			$ 12.02
2	74003565		Runner, Drawer	10	Appelez-nous	-
2	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
3	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
4	74007556		Cord, Power	10	Appelez-nous	-
5	12001655		Sensor, Oven (short)   (Replaces: 74004944)	10		Immediately	$ 41.01
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	7401P037-60		Block, Terminal	10	Appelez-nous	-
8	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
8	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
9	74003388		Housing, Bulb	10	Appelez-nous	-
10	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
11	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
12	74003389		Cover, Bulb	10	Appelez-nous	-
13	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74007129		Support, Valve Regulator	10			$ 9.81
16	74009480		Retainer, Bottom Insulation	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74006574		Shield, Heat Pouch	10	Appelez-nous	-
18	7002P140-60		Insulation, Drawer & Shield	10	Appelez-nous	-
18	74003503		Insulation, Oven	10	Appelez-nous	-
19	74006591		Shield, Warming Drawer	10	Appelez-nous	-
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	74004465		Pan, Bake Burner	10	Appelez-nous	-
21	74001219		Baffle, Oven Front	10	Appelez-nous	-
21	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	74003387		Receptacle, Bulb	10			$ 5.84
23	74009583		Support, Spark Module	10	Appelez-nous	-
23	WP7101P434-60		Screw   (Replaces: 71001394)	10			$ 6.26
24	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
24	74005465		Cover, Valve/regulator	10	Appelez-nous	-
25	3601F239-45		Baffle, Oven Bottom	10	Appelez-nous	-
25	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
25	5504M004-19		Bottom, Oven Assy.	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
