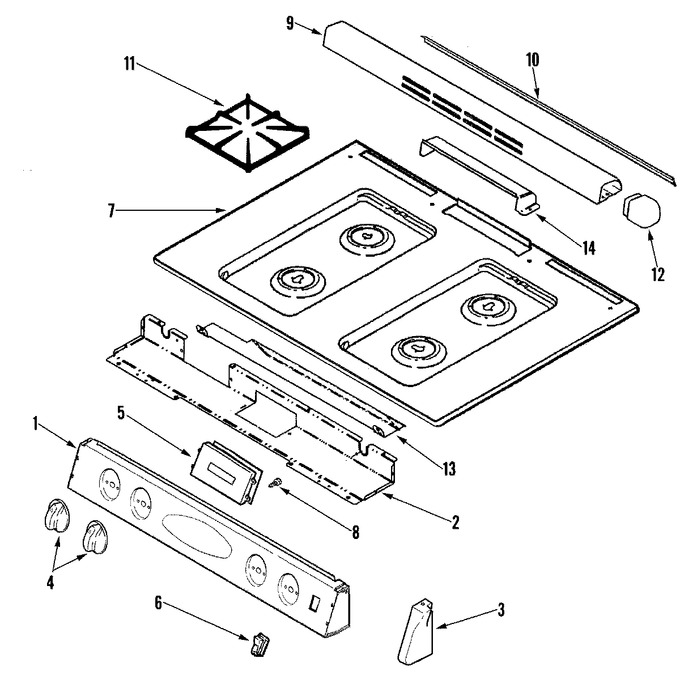

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010976		Panel, Control (blk)	10	Appelez-nous	-
2	74010826		Support, Control Panel	10	Appelez-nous	-
3	74010835		Cap, End (blk-lt)	10	Appelez-nous	-
3	74010834		Cap, End (blk-rt)	10	Appelez-nous	-
4	74010974		Knob (blk)	10			$ 67.28
5	74010979		Bracket, Clock Mtg	10	Appelez-nous	-
5	WP5701M887-60		Clock/overlay (blk)   (Replaces: 74010681)	10		Immediately	$ 546.72
6	7403P985-60		Switch, Rocker W/shield (blk)   (Replaces: 74010227)	10			$ 82.20
7	74010968		Top Assembly (blk)	10	Appelez-nous	-
8	WP74004005		Screw, 6-32 X 5/16``   (Replaces: 74004005)	10			$ 6.95
9	74010946		Cover, Vent (blk)	10	Appelez-nous	-
10	7201P061-60		Gasket	10			$ 4.83
11	74009133		Grate, (blk)	10			$ 108.75
12	74004365		End Cap, Vent (rt-blk)	10	Appelez-nous	-
12	74010925		End Cap, Vent (lt-blk)	10			$ 11.53
13	74010846		Shield, Control	10	Appelez-nous	-
14	3601F221-45		Baffle, Vent Cover	10			$ 28.30
