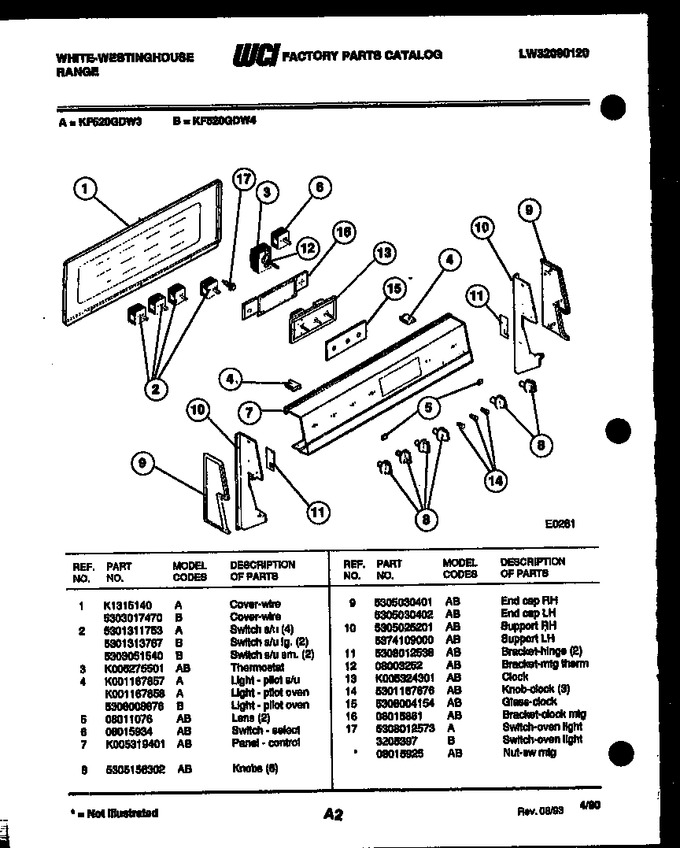

02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K1315140 | Cover-wire |
|
- | |||||
| 2 | 5301311753 | Switch S/u (4) |
|
- | |||||
| 3 | K005275501 | Thermostat |
|
- | |||||
| 4 | K001167857 | Light - Pilot S/u |
|
- | |||||
| 5 | 08011076 | Lens (2) |
|
- | |||||
| 6 | 08015934 | Switch - Select |
|
- | |||||
| 7 | K005319401 | Panel - Control |
|
- | |||||
| 8 | 5305156302 | Knobs (6) |
|
- | |||||
| 9 | 5305030401 | End Cap Rh |
|
- | |||||
| 10 | 5305025201 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 13 | K005324301 | Clock |
|
- | |||||
| 14 | 5301167676 | Knob, Clock (3) |
|
- | |||||
| 15 | 5308004154 | Glass, Clock |
|
- | |||||
| 16 | 08015861 | Bracket - Clock Mtg |
|
- | |||||
| 17 | 5308012573 | Switch, Oven Light |
|
- | |||||
| *69627 | 08015925 | Nut - Sw Mtg |
|
- | |||||
| 10A | 5374109000 | Support Lh |
|
- | |||||
| 4A | K001167858 | Light - Pilot Oven |
|
- | |||||
| 9A | 5305030402 | End Cap Lh |
|
- |
