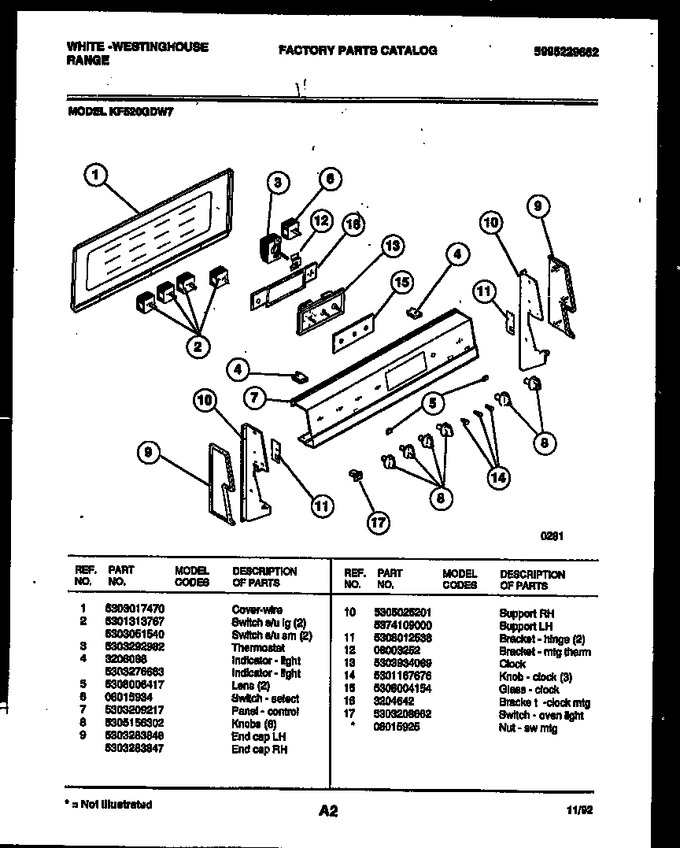

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 3 | 5303292982 | Thermostat |
|
- | |||||
| 4 | 3206088 | Indicator - Light |
|
- | |||||
| 4 | 5303276663 | Indicator - Light |
|
$ 59.12 | |||||
| 5 | 5308006417 | Lens (2) |
|
$ 19.06 | |||||
| 6 | 08015934 | Switch - Select |
|
- | |||||
| 7 | 5303209217 | Panel - Control |
|
- | |||||
| 8 | 5305156302 | Knobs (6) |
|
- | |||||
| 9 | 5303283848 | End Cap, Lh |
|
- | |||||
| 10 | 5305025201 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 13 | 5303934089 | Clock |
|
- | |||||
| 14 | 5301167676 | Knob, Clock (3) |
|
- | |||||
| 15 | 5308004154 | Glass, Clock |
|
- | |||||
| 16 | 3204642 | Bracket-clock Mtg |
|
- | |||||
| 17 | 5303208662 | Switch-oven Light |
|
- | |||||
| *71599 | 08015925 | Nut - Sw Mtg |
|
- | |||||
| 10A | 5374109000 | Support Lh |
|
- | |||||
| 2A | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 9A | 5303283847 | End Cap, Rh |
|
- |
