SELECT A DIAGRAM

01 - Body


02 - Door/drawer (adc)


03 - Gas Controls


04 - Oven/base


05 - Top Assembly (ada, Adb, Adw, Adc)


06 - Wiring Information

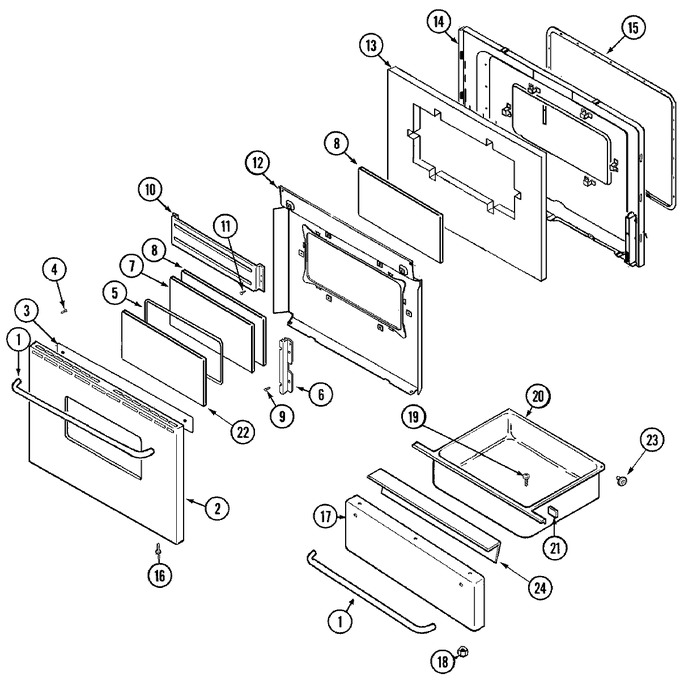

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001071		Handle, Door	10	Appelez-nous	-
2	74005271		Panel, Door (chr)	10	Appelez-nous	-
3	74003146		Insulation, Foil Back	10	Appelez-nous	-
4	74001521		Washer (1``)	10			$ 5.27
4	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
5	7201P017-60		Gasket, Window	10			$ 52.69
6	74003048		Retainer, Glass	10	Appelez-nous	-
7	74002002		Glass, Inner	10			$ 62.17
8	74003320		Glass, Inner	10			$ 86.35
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
11	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
12	74001843		Baffle, Door	10	Appelez-nous	-
13	74001842		Insulation, Door	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74003312		Panel, Drawer (chr)	10	Appelez-nous	-
18	74003643		Nut, Snap (square-blk)	10			$ 8.02
19	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
20	71003042		Drawer, Storage	10	Appelez-nous	-
21	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
22	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
23	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
23	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
24	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
