02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

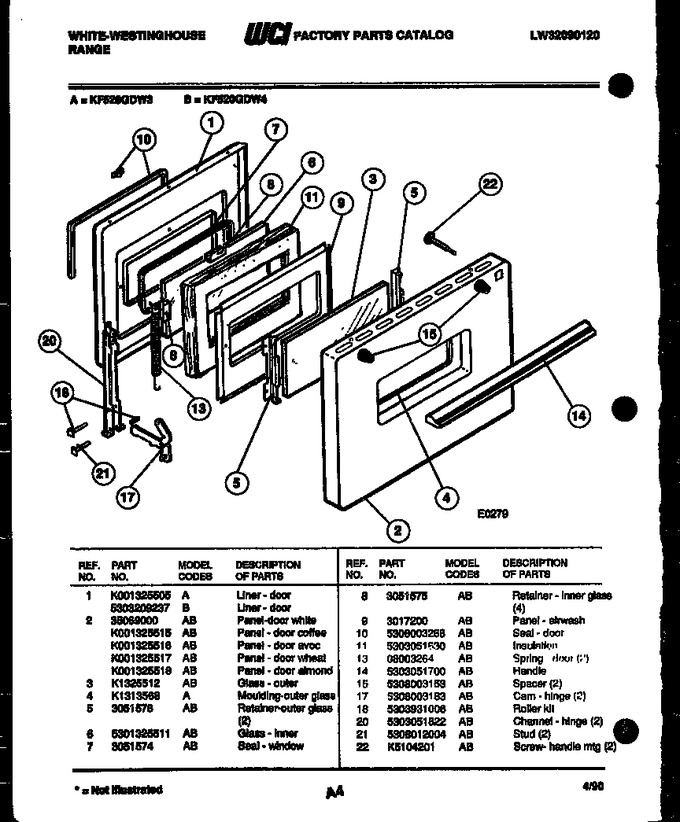

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K001325505 | Liner - Door |
|
- | |||||
| 2 | K001325516 | Panel - Door Avoc |
|
- | |||||
| 3 | K1325512 | Glass, Outer |
|
- | |||||
| 4 | K1313568 | Moulding Outer Glass |
|
- | |||||
| 5 | 3051578 | Retainer-outer Glass (2) |
|
- | |||||
| 6 | 5301325511 | Glass, Inner |
|
- | |||||
| 7 | 3051574 | Seal Window |
|
$ 36.58 | |||||
| 8 | 3051575 | Retainer, Inner Glass (4) |
|
- | |||||
| 9 | 3017200 | Panel, Airwash |
|
- | |||||
| 10 | 5308003268 | Seal, Door |
|
- | |||||
| 11 | 5303051630 | Insulation |
|
- | |||||
| 13 | 08003264 | Spring-oven Door |
|
- | |||||
| 14 | 5303051700 | Handle |
|
- | |||||
| 15 | 5308003153 | Spacer (2) |
|
- | |||||
| 17 | 5308003183 | Cam Hinge (2) |
|
$ 90.35 | |||||
| 18 | 5303931006 | Roller-kit |
|
- | |||||
| 20 | 5303051822 | Channel-hinge (2) |
|
- | |||||
| 21 | 5308012004 | Stud (2) |
|
$ 8.29 | |||||
| 22 | K5104201 | Screw- Handle Mtg (2) |
|
- |
