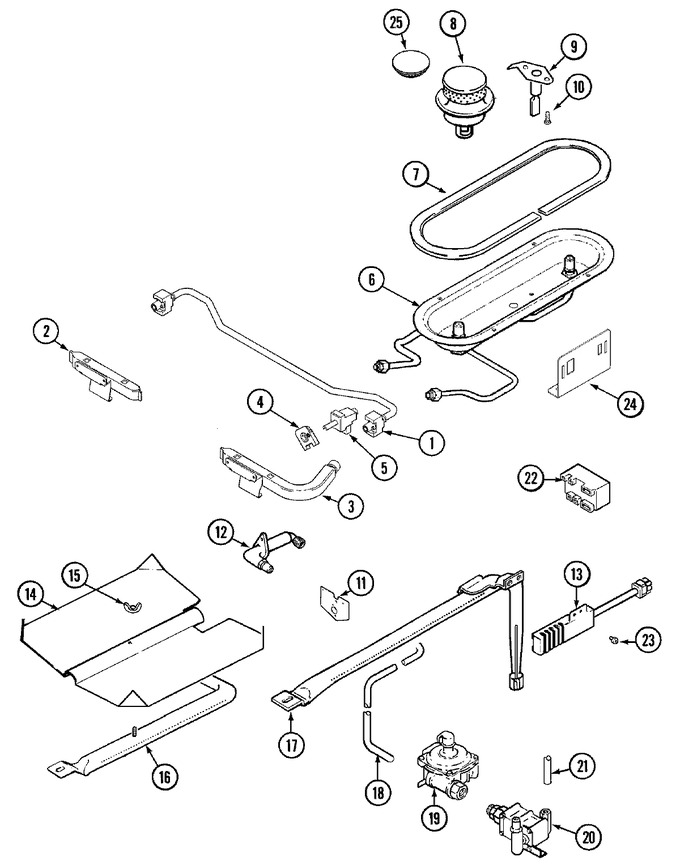

03 - Gas Controls


04 - Oven/base


05 - Top Assembly (ada, Adb, Adw, Adc)


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004299		Gasket, Tubing	10			$ 5.48
1	74004298		Tubing, Manifold Crossover	10	Appelez-nous	-
2	74004411		Pipe, Manifold (lt)	10	Appelez-nous	-
3	74009536		Pipe, Manifold	20	Appelez-nous	-
3	74004412		Pipe, Manifold (rt)	10	Appelez-nous	-
4	WP7403P287-60		Switch, Igniter   (Replaces: 7403P287-60)	10			$ 130.75
4	74002533		Switch, Igniter	10	Appelez-nous	-
5	74004303		Valve, Top Burner	10	Appelez-nous	-
5	74009535		Valve, Mueller	20	Appelez-nous	-
5	74009530		Valve, Mueller	20	Appelez-nous	-
5	74004302		Valve, Top Burner	10	Appelez-nous	-
5	74004409		Valve, Top Burner	10	Appelez-nous	-
6	74004306		Grommet	10	Appelez-nous	-
6	74004413		Orifice Pan Assy. (rt)	10	Appelez-nous	-
6	74004304		Orifice Pan Assy. (lt)	10	Appelez-nous	-
7	74006056		Gasket, Burner Pan	10	Appelez-nous	-
8	WP3412D021-09		Burner, Sealed (blk)   (Replaces: 74004425)	10			$ 171.61
8	WP3412D024-09		Burner, Sealed (blk)   (Replaces: 74003963)	10		Immediately	$ 92.69
9	74004053		Igniter, Top Burner	10		Immediately	$ 24.25
9	74004410		Igniter	10			$ 26.47
10	WPW10253196		Screw   (Replaces: Y707113)	10			$ 3.76
11	74004307		Plate, Broil Fitting	10	Appelez-nous	-
12	74004461		Fitting, Broil Burner	10	Appelez-nous	-
12	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
12	WP74007593		Orifice Hood .049 (lp)   (Replaces: 74007593)	10			$ 94.73
13	74007498		Igniter, Oven   (Replaces: 7432P075-60)	10		Immediately	$ 78.40
14	74009231		Baffle, Broil Burner	19	Appelez-nous	-
14	3601F217-45		Baffle, Broil	10	Appelez-nous	-
15	7103P030-60		Nut, Wing	10			$ 6.37
16	74004076		Burner, Broil	10	Appelez-nous	-
17	74003960		Burner, Bake	10			$ 90.29
17	3807F446-45		Support, Burner	10	Appelez-nous	-
18	7103P130-60		Nut, Loxit (3/8``)	10			$ 8.20
18	74004462		Tubing, Regulator/pipe (3/8``)	10	Appelez-nous	-
19	WP74006429		Regulator, Pressure   (Replaces: 7510P067-60)	10			$ 282.77
20	WP74006427		Valve, Oven   (Replaces: 7501P097-60)	10			$ 313.44
20	74007621		Valve, Oven	17	Appelez-nous	-
21	74004408		Tubing (3/8``)	10	Appelez-nous	-
22	8215557		Module, Spark (4+0)   (Replaces: 74004283)	10		Immediately	$ 124.99
23	4005F421-45		Cover,igniter	10	Appelez-nous	-
23	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
24	74004297		Support, Spark Module	10	Appelez-nous	-
25	WP3403F088-00		Cap, Burner (blk)   (Replaces: 71003053)	10			$ 68.15
26	74009534		Wire, 3.5`` (tan 18g)	20			$ 5.27
26	74006047		Screw, Hex (blk)	20	Appelez-nous	-
26	74009533		Wire, 3.5`` (blk 18g)	20			$ 5.51
27	WP74007593		Orifice Hood .049 (lp)   (Replaces: 74007593)	17			$ 94.73
27	W10124350		Not Required Part Or See Note Lp Conversion Kit N/a	10	Appelez-nous	-
