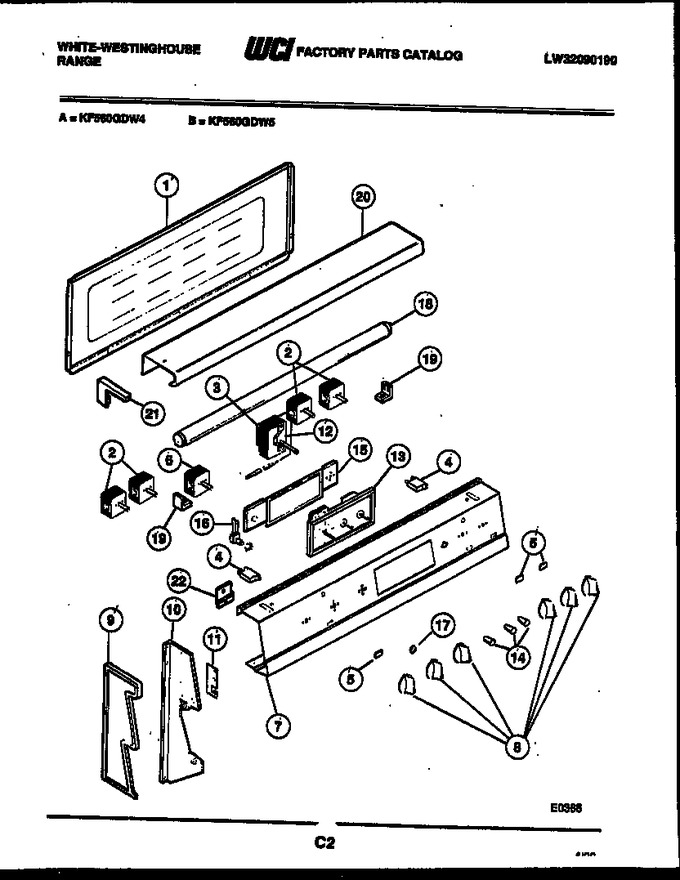

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Cover, Wire.		Appelez-nous	-
2	K1311753		Switch-s/u (4)		Appelez-nous	-
3	5301324562		Thermostat		Appelez-nous	-
4	K001167857		Light - Pilot S/u		Appelez-nous	-
5	5308006417		Lens (3)				$ 19.06
6	5305328201		Switch-selector		Appelez-nous	-
7	K005327601		Panel-control		Appelez-nous	-
8	5305156302		Knobs (6)		Appelez-nous	-
9	5305030401		End Cap Rh		Appelez-nous	-
10	5305025201		Support Rh		Appelez-nous	-
11	5308012538		Bracket, Hinge (2)		Appelez-nous	-
12	K1317816		Bracket-mtg Thermo		Appelez-nous	-
13	5305156401		Clock		Appelez-nous	-
14	5303016892		Knob, Clock (3)		Appelez-nous	-
15	08015861		Bracket - Clock Mtg		Appelez-nous	-
16	5308012754		Switch-flu		Appelez-nous	-
17	08012572		Nut-switch		Appelez-nous	-
18	5308012712		Bulb-flu		Appelez-nous	-
19	08012748		Holder-flu Light (2)		Appelez-nous	-
20	5305030702		Shield-light		Appelez-nous	-
21	5305033501		End Cap-light Shield Rh		Appelez-nous	-
22	K005297501		Hinge-light Shield (2)		Appelez-nous	-
10A	5374109000		Support Lh		Appelez-nous	-
21A	5305033502		End Cap-light Shield Lh		Appelez-nous	-
4A	5308008876		Light-pilot Oven		Appelez-nous	-
4B	5308012563		Light-pilot Lock		Appelez-nous	-
9A	5305030402		End Cap Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
