Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303011670		Fuse, 20 Amp, 250 V		Appelez-nous	-
3	5303013771		Retainer-capacitor		Appelez-nous	-
4	5303014097		Spacer, Foot, (4)		Appelez-nous	-
5	5303017864		Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size		Appelez-nous	-
6	5303201365		Plug, Button, White. Probe		Appelez-nous	-
7	5303201602		Switch, Monitor, Sensor		Appelez-nous	-
8	5303203636		Switch, Interlock		Appelez-nous	-
9	5303206781		Magnetron		Appelez-nous	-
10	5303212767		Bezel Latch (2)		Appelez-nous	-
11	5303212769		Bushing-fuse Holder, Strain Relief		Appelez-nous	-
12	5303269608		Capacitor		Appelez-nous	-
13	5303212774		Cord, Elec Service, 120v		Appelez-nous	-
14	5303280317		Bracket, Switch, (2)		Appelez-nous	-
16	5303269837		Harness And Diode, Hv		Appelez-nous	-
17	5303212810		Socket, Oven Lamp, 120v		Appelez-nous	-
18	5303212811		Transformer, 120v		Appelez-nous	-
19	5303273954		Seal-foam, Cut To Size		Appelez-nous	-
20	5303271795		Label, Cooking Guide, English		Appelez-nous	-
21	5303922053		Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I		Appelez-nous	-
22	5308014502		Screw, 6, 32 X 1, 1/8, Fan Motor, (2)		Appelez-nous	-
24	5308037665		Plug, Button, White, Tray, (2)		Appelez-nous	-
26	5303212801		Lamp, 40 W, 120 V				$ 53.13
32	5303013944		Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2)		Appelez-nous	-
37	5308037724		Spacer		Appelez-nous	-
40	5303014221		Support-rack (4)		Appelez-nous	-
42	5303212785		Element-browner		Appelez-nous	-
51	5308037644		Grommet-door		Appelez-nous	-
53	5303269832		Duct-air		Appelez-nous	-
54	5303269833		Duct-air, Fan		Appelez-nous	-
22A	5303013273		Nut, Hex, 6-32 (non-illustrated)		Appelez-nous	-
42A	5303274084		Harness-wiring, 1.3, Browner (non-illustrated)		Appelez-nous	-

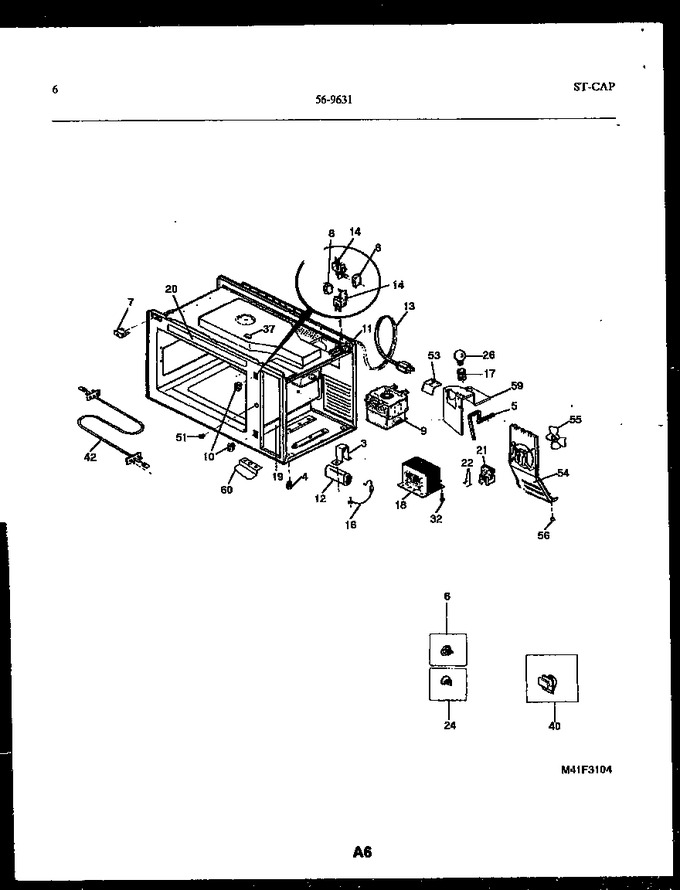

    View Diagram in Separate Window       Print Part List
