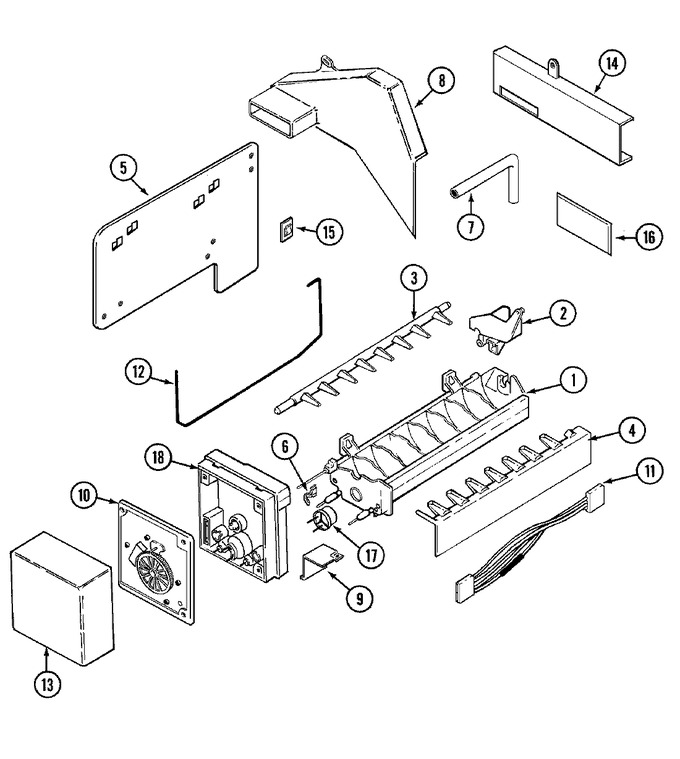

01 - Retrofit Ice Maker Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
	61001593		Wire Harness	10	Appelez-nous	-
1	95099-1		Grease, Silicone	10	Appelez-nous	-
1	D7824706Q		Mold & Heater Assy.   (Replaces: 95098-1)	10		Immediately	$ 150.62
2	WP628356		Inlet, Water   (Replaces: 95100-1)	10			$ 46.07
3	WP627843		Ejector, Ice   (Replaces: 95101-1)	10			$ 75.24
4	WP2182124		Stripper, Ice   (Replaces: 95102-1)	10			$ 77.45
5	61001596		Mounting Plate, S.s.	10	Appelez-nous	-
5	61001600		Tape, Double Back 3 X 3	10	Appelez-nous	-
6	WP2315522		Retainer, Thermostat   (Replaces: 95104-1)	10			$ 9.95
7	61001592		Tube, Fill	10			$ 26.52
8	70198-3		Duct, Air	10	Appelez-nous	-
8	WPW10253196		Screw   (Replaces: Y707113)	10			$ 3.76
9	WP489128		Screw, Bracket   (Replaces: 95108-1)	10			$ 9.79
9	61001595		Nut, 18-8 Hex Head	10			$ 5.27
9	WP2256087		Bracket, Module & Heater   (Replaces: 95107-1)	10			$ 83.70
9	61001594		Bolt, 8/32 X 1/4	10	Appelez-nous	-
10	D7824706Q		Module, Ice Maker   (Replaces: 95109-1)	10		Immediately	$ 150.62
11	61001593		Wire Harness	10	Appelez-nous	-
12	W11807379		Arm, Sensor   (Replaces: 70142-1)	10		Immediately	$ 54.18
13	WPW10289690		Cover Ice Maker   (Replaces: 68113-1)	10		Immediately	$ 7.56
14	61001597		Baffle, Air	10	Appelez-nous	-
15	67619-1		Clip, Tube	10	Appelez-nous	-
16	65706-1		Insert	10			$ 26.72
17	WP627985		Thermostat   (Replaces: 95092-1)	10		Immediately	$ 98.26
17	95093-1		Cement, Alumilastic (4 Oz.)	10			$ 49.64
18	WP2195914		Support, Module Housing   (Replaces: 95103-1)	10			$ 94.11
18	WP681249		Screw   (Replaces: 95106-1)	10		Immediately	$ 7.07
