| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP33001789 |
 |
Housing, Blower (Replaces: 33001789) |
10 |
|
|
$ 128.00 |
|
|
| 2 |
33002185 |
|
Duct Assy., Exhaust |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
33002321 |
|
Seal, Exhaust |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
W11573574 |
 |
Screw (Replaces: 22001995) |
10 |
|
Immediately |
$ 12.62 |
|
|
| 3 |
WP9703438 |
 |
Ring, Retaining (Replaces: 410233) |
10 |
|
Immediately |
$ 3.81 |
|
|
| 4 |
33001790 |
 |
Wheel, Blower |
10 |
|
Immediately |
$ 44.73 |
|
|
| 5 |
WP312967 |
 |
Clamp, Blower Housing (Replaces: 312967) |
10 |
|
Immediately |
$ 10.68 |
|
|
| 6 |
WP33002917 |
 |
Screw (hex Head) (Replaces: 33001855) |
10 |
|
Immediately |
$ 6.90 |
|
|
| 7 |
Y313561 |
|
Screw----na |
10 |
|
|
$ 5.27 |
|
|
| 9 |
WP489128 |
 |
Screw (Replaces: 22001996) |
10 |
|
|
$ 9.79 |
|
|
| 10 |
WP33001762 |
 |
Fuse, Thermal (w` Bracket) (Replaces: 33001762) |
10 |
|
Immediately |
$ 49.84 |
|
|
| 11 |
WP489128 |
|
Screw (Replaces: 22001996) |
10 |
|
|
$ 9.79 |
|
|
| 12 |
33001873 |
|
Cover, Blower Housing----na |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
314818 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
W10410997 |
 |
Motor (w/pulley) (Replaces: 33001853) |
10 |
|
Immediately |
$ 165.38 |
|
|
| 14 |
W10410997 |
|
Motor (w/pulley) (Replaces: 33002237) |
11 |
|
Immediately |
$ 165.38 |
|
|
| 14 |
W10410997 |
|
Motor (120v 60hz) (Replaces: 33002462) |
15 |
|
Immediately |
$ 165.38 |
|
|
| 15 |
WPY015825 |
 |
Clip, Motor (Replaces: 33002221) |
10 |
|
|
$ 21.03 |
|
|
| 15 |
W10410997 |
|
Motor (Replaces: 33002478) |
18 |
|
Immediately |
$ 165.38 |
|
|
| 16 |
WP488234 |
 |
Screw, Ground Wire (Replaces: 910343) |
10 |
|
|
$ 6.07 |
|
|
| 17 |
W10410997 |
|
Switch, Motor (Replaces: 33001854) |
10 |
|
Immediately |
$ 165.38 |
|
|
| 18 |
33002459 |
 |
Spring, Idler (Replaces: 33002460) |
14 |
|
|
$ 6.94 |
|
|
| 18 |
33002461 |
|
Plug For Spring |
14 |
Appelez-nous
|
- |
|
|
|
| 18 |
33002459 |
|
Spring, Idler (Replaces: 33001754) |
10 |
|
|
$ 6.94 |
|
|
| 18 |
33002157 |
|
Grommet |
10 |
Appelez-nous
|
- |
|
|
|
| 19 |
WP6-3705180 |
 |
Idler Arm & Shaft Assy. (Replaces: 33001840) |
10 |
|
Immediately |
$ 44.32 |
|
|
| 20 |
WPY312527 |
 |
Washer, Idler Shaft (qty-1) (Replaces: Y312527) |
10 |
|
Immediately |
$ 10.01 |
|
|
| 21 |
WP6-3700340 |
 |
Bearing, Idler Assembly (Replaces: 33001783) |
10 |
|
Immediately |
$ 24.98 |
|
|
| 22 |
WP354987 |
 |
Retaining Ring, Idler Shaft (Replaces: 312958) |
10 |
|
Immediately |
$ 10.58 |
|
|
| 23 |
WP315772 |
 |
Sleeve, Idler Arm (Replaces: 315772) |
10 |
|
Immediately |
$ 10.39 |
|
|
| 24 |
WPY014874 |
 |
Screw (Replaces: Y014874) |
10 |
|
|
$ 6.98 |
|
|
| 25 |
33001752 |
|
Support, Motor |
10 |
Appelez-nous
|
- |
|
|
|
| 25 |
33002466 |
|
Support, Motor |
14 |
Appelez-nous
|
- |
|
|
|
| 26 |
Y313561 |
|
Screw----na |
10 |
|
|
$ 5.27 |
|
|
| 27 |
33002467 |
|
Base (upr) |
14 |
Appelez-nous
|
- |
|
|
|
| 27 |
WP302797 |
|
Strip, Grommet (Replaces: 33002049) |
10 |
|
|
$ 7.74 |
|
|
| 27 |
WP90767 |
 |
Screw-gas Valve To Bracket (Replaces: 314568) |
10 |
|
Immediately |
$ 7.04 |
|
|
| 27 |
33002041 |
|
Base (upr) |
10 |
Appelez-nous
|
- |
|
|
|
| 27 |
33002623 |
|
Base, (upr) |
36 |
Appelez-nous
|
- |
|
|
|
| 27 |
33002050 |
|
Protector, Harness |
10 |
Appelez-nous
|
- |
|
|
|
| 28 |
410490 |
|
Spring, Wire Harness |
10 |
Appelez-nous
|
- |
|
|
|
| 29 |
33002043 |
|
Bracket (rt) |
10 |
Appelez-nous
|
- |
|
|
|
| 29 |
W11573574 |
|
Screw (Replaces: 22001995) |
10 |
|
Immediately |
$ 12.62 |
|
|
| 29 |
33002042 |
|
Bracket (lt) |
10 |
Appelez-nous
|
- |
|
|
|
| 30 |
33002044 |
|
Guide |
10 |
Appelez-nous
|
- |
|
|
|
| 31 |
12001551 |
|
Bracket/screw Package |
10 |
Appelez-nous
|
- |
|
|
|

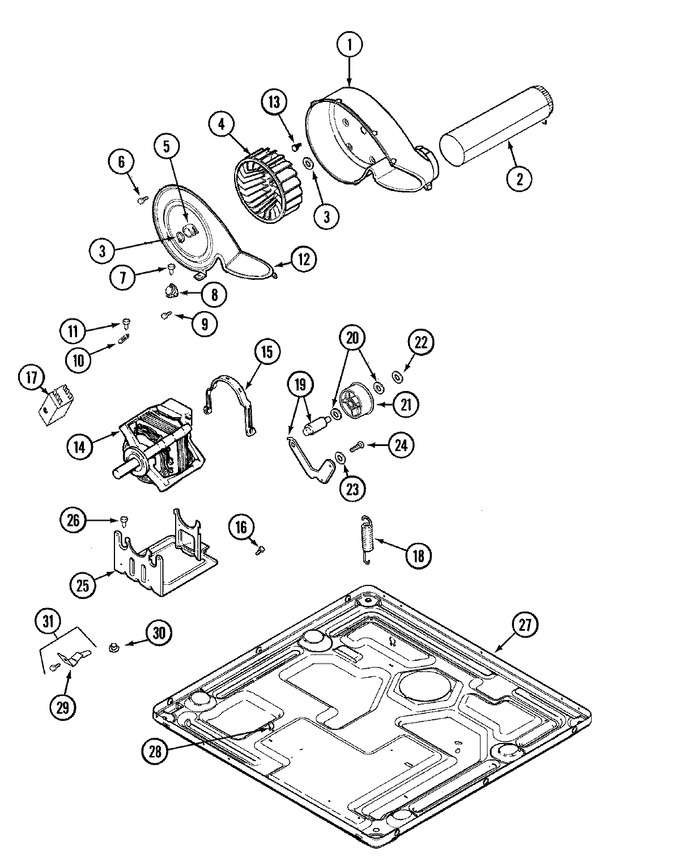

View Diagram in Separate Window
