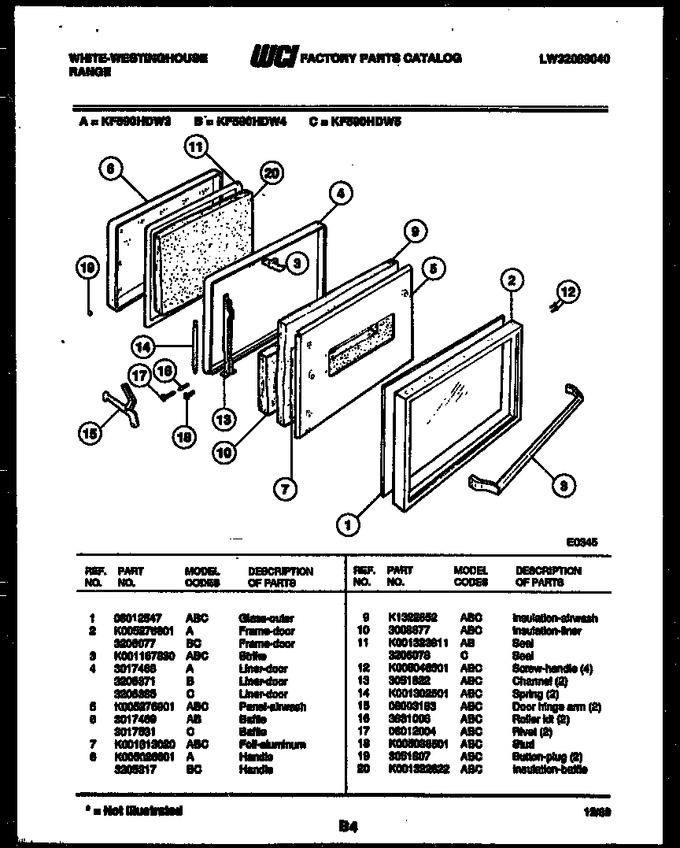

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012547		Glass - Outer		Appelez-nous	-
2	3206077		Frame, Door		Appelez-nous	-
3	K001167830		Strike		Appelez-nous	-
4	3206385		Liner-door		Appelez-nous	-
5	K005276901		Panel-airwash		Appelez-nous	-
6	3017531		Baffle		Appelez-nous	-
7	K001313020		Foil-aluminum		Appelez-nous	-
8	3205317		Handle		Appelez-nous	-
9	K1322652		Insulation, Airwash		Appelez-nous	-
10	3008677		Insulation, Liner		Appelez-nous	-
11	3206078		Seal		Appelez-nous	-
12	K005046501		Screw-handle (4)		Appelez-nous	-
13	3051822		Channel (2)		Appelez-nous	-
14	K001302501		Spring (2)		Appelez-nous	-
15	08003183		Door-hinge Arm		Appelez-nous	-
16	3931006		Roller Kit (2)		Appelez-nous	-
17	08012004		Rivet (2)		Appelez-nous	-
18	K005038501		Stud		Appelez-nous	-
19	3051807		Button, Plug (2)		Appelez-nous	-
20	K001322622		Insulation-baffle		Appelez-nous	-
