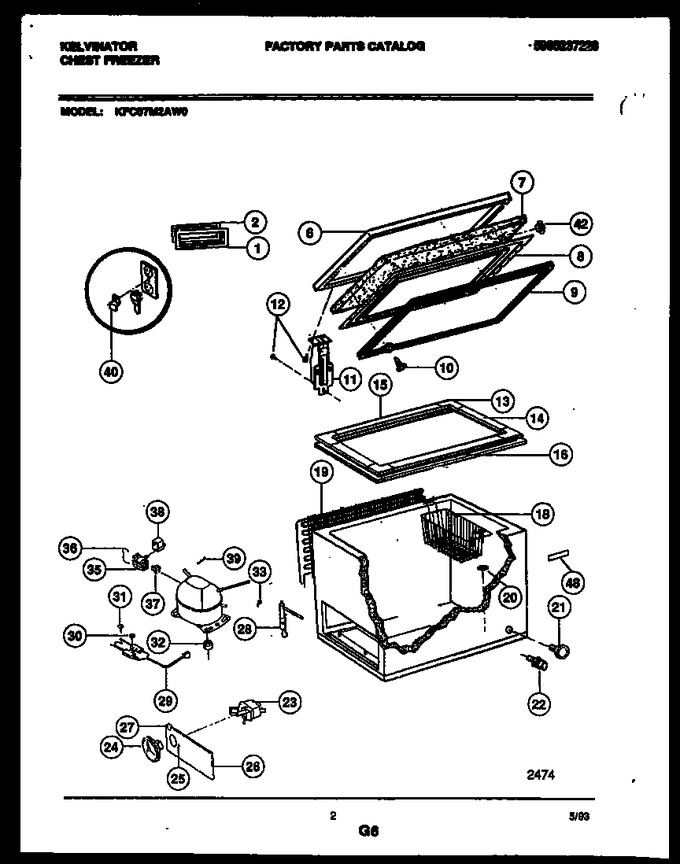

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216140204		Handle-brown		Appelez-nous	-
2	08009392		Gasket		Appelez-nous	-
6	216113108		Lid Exterior-white		Appelez-nous	-
7	5303207270		Insulation		Appelez-nous	-
8	216062102		Panel-inner				$ 397.64
9	5308037991		Gasket-brown		Appelez-nous	-
10	5303212828		Clip Panel ( 20 )				$ 16.63
11	216119101		Hinge		Appelez-nous	-
12	5309950602		Screw Hinge				$ 5.30
13	216105502		Breaker-corner-brown		Appelez-nous	-
14	216105602		Breaker-side-brown		Appelez-nous	-
15	216112802		Breaker-rear-brown		Appelez-nous	-
16	216112802		Breaker-front-brown		Appelez-nous	-
17	216117700		Catch-lock		Appelez-nous	-
18	216848200		Basket-white (1)   (Replaces: 216078600)				$ 53.21
19	5300120780		Condenser (not Original Equipment-service Replacement On		Appelez-nous	-
20	5306593887		Plug-drain		Appelez-nous	-
21	216208300		Plug-drain		Appelez-nous	-
22	06594053		Adapter, Hose		Appelez-nous	-
23	5304496560		Control Temp   (Replaces: 5303212610)				$ 49.62
24	216034505		Knob-control		Appelez-nous	-
25	5303208663		Plug-indicator		Appelez-nous	-
26	216108300		Panel-access		Appelez-nous	-
27	5309950877		Retainer (4)		Appelez-nous	-
28	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
29	216138300		Harness		Appelez-nous	-
30	216022800		Screw		Appelez-nous	-
31	216036600		Screw-ground		Appelez-nous	-
32	215175000		Grommet		Appelez-nous	-
33	5303212614		Clip Harness				$ 2.88
34	216138400		Compressor		Appelez-nous	-
35	216008900		Relay		Appelez-nous	-
36	216147800		Clamp		Appelez-nous	-
37	5303206885		Overload				$ 119.23
38	5304464438		Capacitor-run   (Replaces: 216236300)			Immediately	$ 35.38
39	216056400		Clip (3)		Appelez-nous	-
40	08016777		Clamp-power Cord		Appelez-nous	-
42	216141101		Plug-hole Lid				$ 2.57
48	5303298522		Nameplate		Appelez-nous	-
