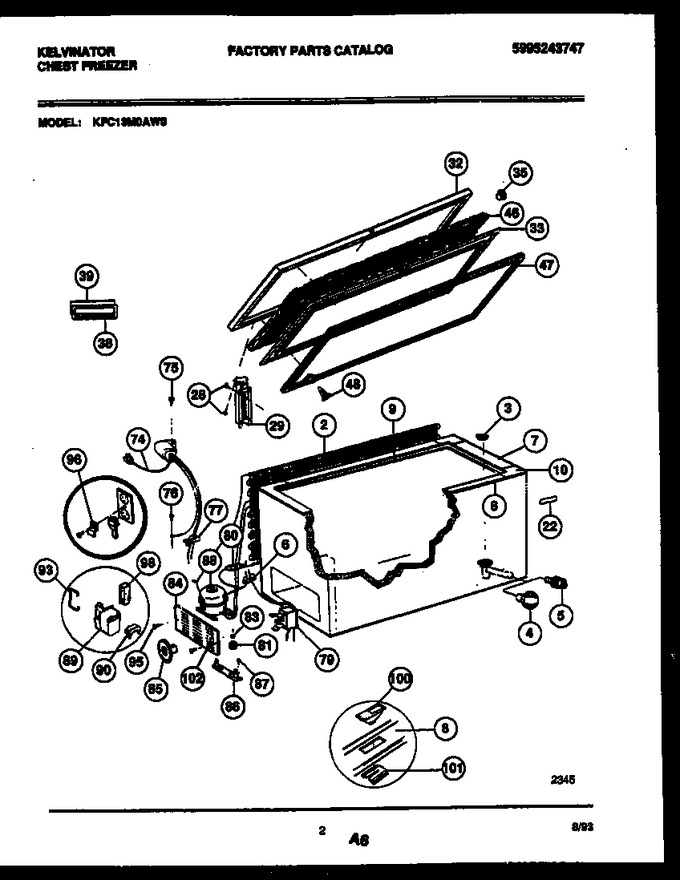

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | Condenser (not Original Equipment - Service Replacement |
|
$ 640.71 | |||||
| 3 | 216208300 | Plug-drain Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet |
|
- | |||||
| 7 | 216110802 | Breaker Ends |
|
- | |||||
| 8 | 216110902 | Breaker-front |
|
- | |||||
| 9 | 216110902 | Breaker-rear |
|
- | |||||
| 10 | 216110702 | Breaker-corners |
|
- | |||||
| 22 | 5303298522 | Nameplate |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 216039600 | Hinge |
|
- | |||||
| 32 | 216129800 | Lid-panel |
|
- | |||||
| 33 | 216057606 | Panel-inner Lid |
|
$ 307.81 | |||||
| 35 | 216141101 | Plug |
|
$ 2.57 | |||||
| 38 | 216140204 | Handle-brown |
|
- | |||||
| 39 | 08009392 | Gasket Handle |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 216079801 | Gasket-lid-brown |
|
- | |||||
| 48 | 5303212828 | Clip Panel (36) |
|
$ 16.63 | |||||
| 74 | 216089600 | Wiring Harness W/ Power Cord |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 5303212614 | Clip Wires |
|
$ 2.88 | |||||
| 79 | 5304496560 | Control Temperature (Replaces: 216230400) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 215175000 | Grommet Compr (4) |
|
- | |||||
| 83 | 216056400 | Clip Compressor (4) |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034505 | Control Knob |
|
- | |||||
| 86 | 5303212615 | Support Compr (2) |
|
- | |||||
| 87 | 08016776 | Screw-support (2) |
|
- | |||||
| 88 | 216120800 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 5303206816 | Overload |
|
- | |||||
| 93 | 216147800 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 96 | 08016777 | Retainer-power Cord (not Original Equipment - Customer P |
|
- | |||||
| 98 | 5304464438 | Run Capacitor (Replaces: 216236300) |
|
Immediately | $ 35.38 | ||||
| 100 | 5303208488 | Latch |
|
- | |||||
| 101 | 216080800 | Support-latch |
|
- | |||||
| 102 | 5303208663 | Plug-indicator |
|
- | |||||
| 86A | 216232700 | Washer (non-illustrated) |
|
- |
