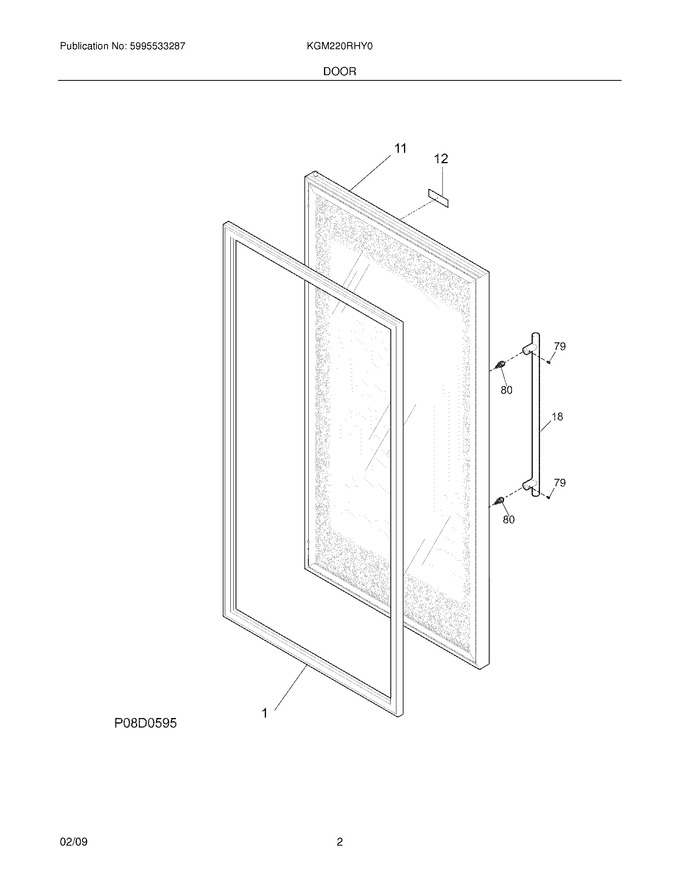

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216657201		Gasket-door,black				$ 256.04
11	297071600		Door-assy,glass				$ 1,529.20
12	297146600		Nameplate,commercial		Appelez-nous	-
18	297141900		Handle		Appelez-nous	-
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	297168700		Instructions,handle		Appelez-nous	-
NI	297167000		Screw Driver		Appelez-nous	-
