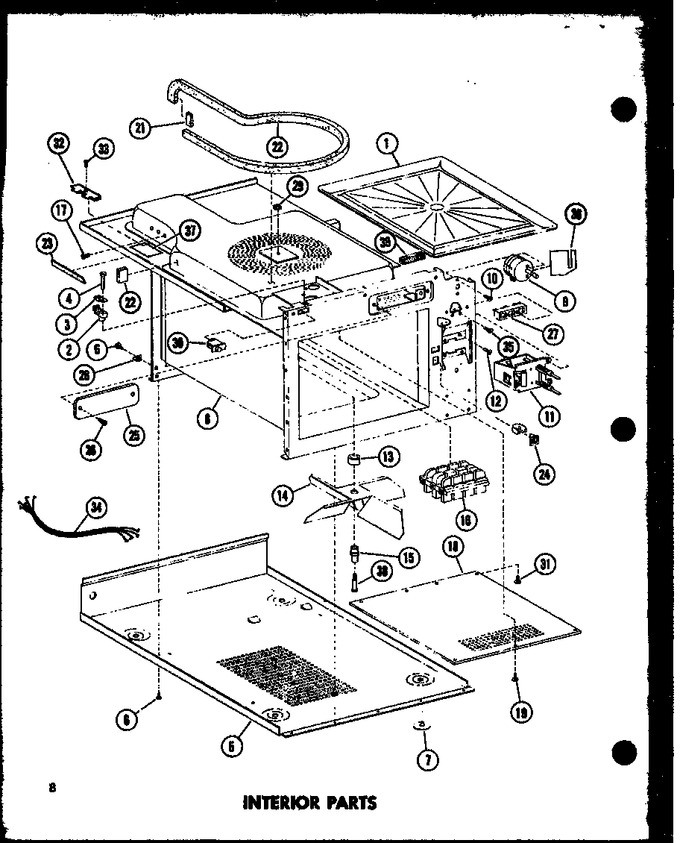

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7191101		Oven Tray		Appelez-nous	-
2	C3696903		Bushing		Appelez-nous	-
3	C3696902		Bushing		Appelez-nous	-
4	A3211102		Pin-door Stop		Appelez-nous	-
5	C3694403		Base Pan Wld		Appelez-nous	-
6	M0230015		Screw		Appelez-nous	-
7	M0310601		Plug		Appelez-nous	-
8	D7321914		Oven Cavity		Appelez-nous	-
9	C8705302		Timer		Appelez-nous	-
10	M0202502		Screw		Appelez-nous	-
11	C3695501		Xswitch-start,stop		Appelez-nous	-
12	M0241205		Screw		Appelez-nous	-
13	B5704202		Bushing		Appelez-nous	-
14	C8720802		Fan Blade-stirrer		Appelez-nous	-
15	A3214801		Bearing		Appelez-nous	-
16	C3694501		Filter-wave Guide		Appelez-nous	-
17	M0253504		Screw		Appelez-nous	-
18	D7206602		Grease Shield K		Appelez-nous	-
19	M0230015		Screw		Appelez-nous	-
21	A3030323		Gasket, Cond. Base Pan Flange-		Appelez-nous	-
22	A3030333		Gasket (1=1ft.)		Appelez-nous	-
23	A3030302		Gasket		Appelez-nous	-
24	M0100702		Catch, Door Strike		Appelez-nous	-
25	B5700201		Access Panel		Appelez-nous	-
26	M0230814		Screw		Appelez-nous	-
27	B5677202		Terminal Block		Appelez-nous	-
28	M0320901		Terminal		Appelez-nous	-
29	M0258301		Nut A		Appelez-nous	-
30	B5674702		Switch-sensing		Appelez-nous	-
31	M0130101		Clip K		Appelez-nous	-
32	B5774401		Brkt-mag Tube		Appelez-nous	-
33	67006425		Screw   (Replaces: M0216530)			Immediately	$ 6.26
34	D7424601		Wiring Harness		Appelez-nous	-
35	M0234117		Screw		Appelez-nous	-
36	A3236701		Insulation-timer		Appelez-nous	-
37	M0275023		Tape,alum Per Roll		Appelez-nous	-
38	A3214903		Shoulder Screw		Appelez-nous	-
39	A3030335		Gasket-per Ft		Appelez-nous	-
