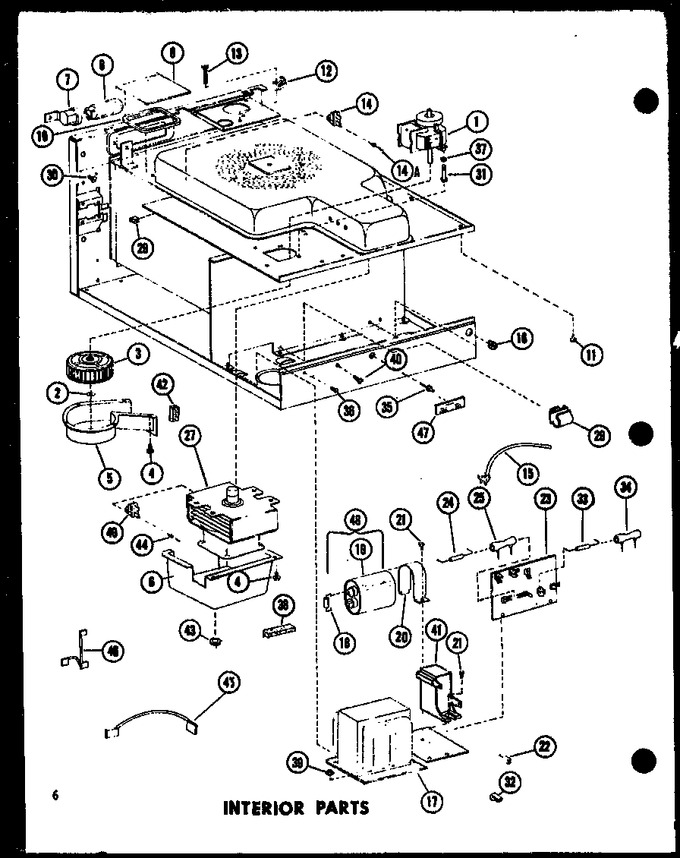

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8738504		Motor		Appelez-nous	-
2	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
3	C8793501		Blower Wheel		Appelez-nous	-
4	M0218116		Screw		Appelez-nous	-
5	C8844201		Scroll-blower		Appelez-nous	-
6	D7354301		Duct-outlet		Appelez-nous	-
7	B5742001		Socket-oven Light		Appelez-nous	-
8	A3167501		Bulb Q				$ 28.47
9	A3213701		Window-oven Light		Appelez-nous	-
10	M0275554		Sealer Ft. A / K		Appelez-nous	-
11	M0130101		Clip K		Appelez-nous	-
12	A3214201		Switch-preform		Appelez-nous	-
13	M0227525		Screw A-k		Appelez-nous	-
14	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
14	B5795302		Thermal Cut Out		Appelez-nous	-
15	B8310501		Cord, Power		Appelez-nous	-
16	A0319703		Strain Relief K		Appelez-nous	-
17	D7372801		Transformer		Appelez-nous	-
18	M0305202		Resistor A		Appelez-nous	-
19	C8790511		Capacitor-.80		Appelez-nous	-
20	A3197102		Strap-capacitor		Appelez-nous	-
21	M0216517		Screw		Appelez-nous	-
22	M0325301		Insulator, Term. K		Appelez-nous	-
23	C8861002		Terminal Board		Appelez-nous	-
24	M0308101		Fuse				$ 9.87
25	M0308601		Resistor A		Appelez-nous	-
27	C8761708		Magnetron		Appelez-nous	-
29	M0118801		Clip		Appelez-nous	-
30	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
31	M0202642		Screw		Appelez-nous	-
32	M0325501		Insulator, Pod K		Appelez-nous	-
33	M0308109		Fuse Resistor K   (Replaces: M0308107)		Appelez-nous	-
34	M0308607		Resistor K		Appelez-nous	-
35	A4539601		Pop Rivet		Appelez-nous	-
36	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
37	M0272605		Washer		Appelez-nous	-
38	A3030332		Gasket-per Ft		Appelez-nous	-
39	WP487939		Nut   (Replaces: M0282015)				$ 6.95
40	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
41	B5767802		Kit, Diode		Appelez-nous	-
42	A3030332		Gasket-per Ft		Appelez-nous	-
43	A3258801		Grommet		Appelez-nous	-
44	A4539601		Pop Rivet		Appelez-nous	-
45	D7292628		Jumper Wire		Appelez-nous	-
46	C3655836		Jumper Wire		Appelez-nous	-
46	D7365107		Jumper Wire		Appelez-nous	-
46	D7365105		Jumper Wire		Appelez-nous	-
46	D7365119		Jumper Wire		Appelez-nous	-
46	D7365108		Jumper Wire		Appelez-nous	-
46	D7292630		Wire, Jumper H.v. Capacitor To		Appelez-nous	-
47	B5738501		Seal K		Appelez-nous	-
48	R0160028		Capacitor Assy		Appelez-nous	-
49	B5795302		Thermal Cut Out		Appelez-nous	-
