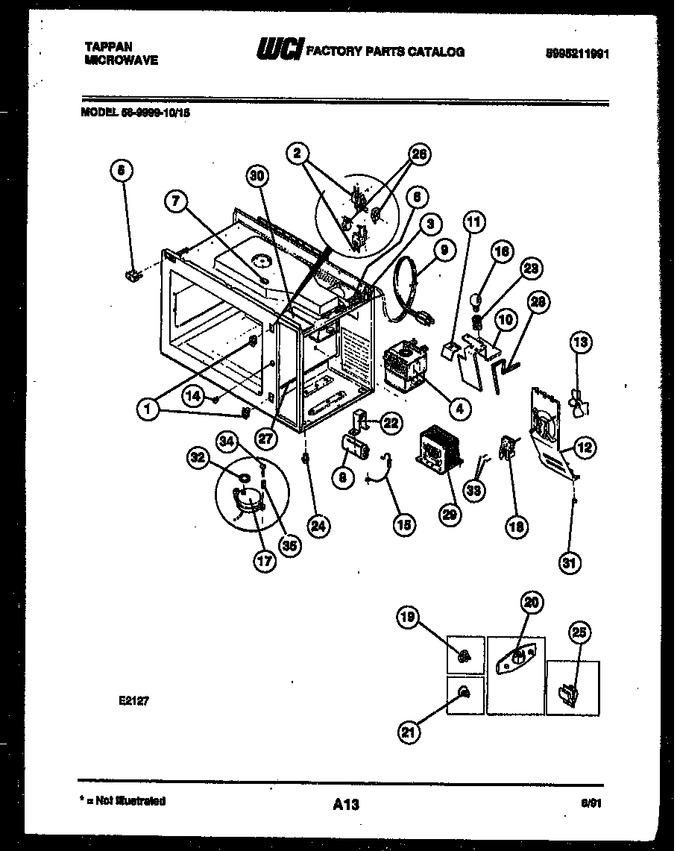

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212767 | Bezel Latch (2) |
|
- | |||||
| 2 | 5303280317 | Bracket, Switch, (2) |
|
- | |||||
| 3 | 5303212769 | Bushing-strain Relief/fuse Holder |
|
- | |||||
| 4 | 5303206781 | Magnetron |
|
- | |||||
| 5 | 5303201602 | Switch-monitor |
|
- | |||||
| 6 | 5303011670 | Fuse |
|
- | |||||
| 7 | 5308037724 | Spacer |
|
- | |||||
| 8 | 5303269608 | Capacitor |
|
- | |||||
| 9 | 5303212774 | Cord-power |
|
- | |||||
| 10 | 5303269831 | Duct-air |
|
- | |||||
| 11 | 5303269832 | Duct-air |
|
- | |||||
| 12 | 5303269833 | Duct-air, Fan |
|
- | |||||
| 13 | 5303269834 | Blade-fan |
|
- | |||||
| 14 | 5308037644 | Grommet-door |
|
- | |||||
| 15 | 5303269837 | Harness-diode |
|
- | |||||
| 16 | 5303212801 | Lamp-120v |
|
$ 53.13 | |||||
| 17 | 5303212920 | Motor-turntable 120v |
|
- | |||||
| 18 | 5303922053 | Motor-fan (fan Duct And Fan Blade Go To .8 Microwave In |
|
- | |||||
| 19 | 5303201365 | Plug-button (probe) |
|
- | |||||
| 20 | 5303013626 | Plug-button, Browner, (2) |
|
- | |||||
| 21 | 5308037665 | Plug-button Tray (2) |
|
- | |||||
| 22 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 23 | 5303212810 | Socket-lamp |
|
- | |||||
| 24 | 5303014097 | Spacer, Foot, (4) |
|
- | |||||
| 25 | 5303014221 | Support Rack (8) |
|
- | |||||
| 26 | 5303203636 | Switch, Interlock |
|
- | |||||
| 27 | 5303212845 | Tape-foam Seal |
|
- | |||||
| 28 | 5303017864 | Tape-foam Seal Cut To Size |
|
- | |||||
| 29 | 5303212811 | Transformer |
|
- | |||||
| 30 | 5303212803 | Nut, Fan Duct |
|
$ 2.10 | |||||
| 31 | 5303269846 | Rivet-duct-air-fan (2) |
|
- | |||||
| 32 | 5303203152 | Washer-turntable (place Underneath - Between Motor And O |
|
- | |||||
| 33 | 5308014502 | Screw-fan Motor (2) |
|
- | |||||
| 34 | 3200767 | Screw-turntable Motor (2) |
|
- | |||||
| 35 | 5303203151 | Spacer-turntable Motor (2) |
|
- | |||||
| *55619 | 5303017865 | Tape-foam Seal Wrapper-right Front Cut To Size |
|
- | |||||
| 31A | 5303269843 | Harness-main (non-illustrated) |
|
- | |||||
| 32A | 5303203239 | Harness-turntable (non-illustrated) |
|
- | |||||
| 32B | 5303013273 | Nut-fan Motor (2) (non-illustrated) |
|
- | |||||
| 32C | 5303013944 | Screw-transformer (2) (non-illustrated) |
|
- |
