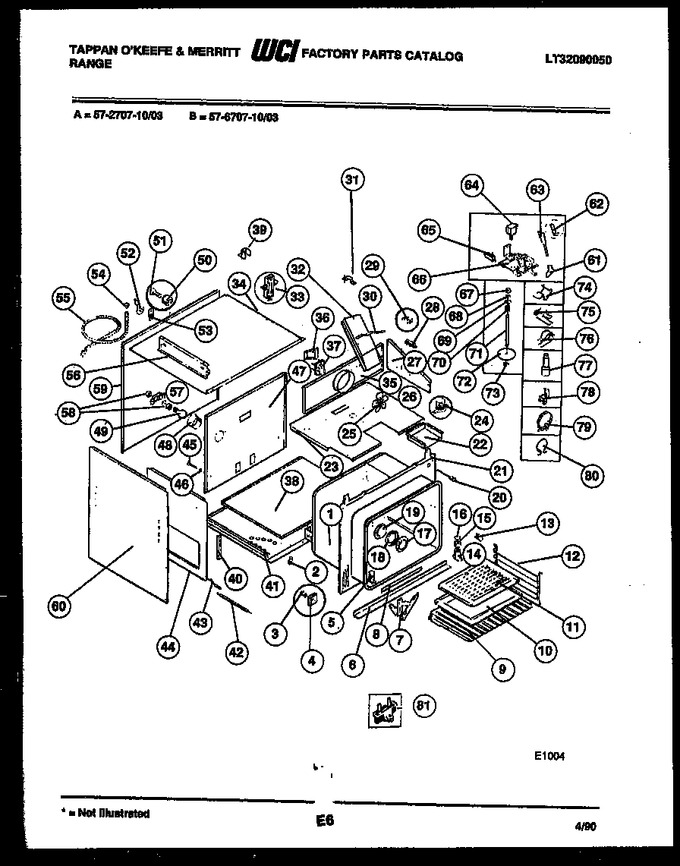

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 384T015W12-86 | Liner-oven |
|
- | |||||
| 2 | 08010560 | Fastener-oven Mtg (2) |
|
- | |||||
| 3 | 287T019P01 | Grommet-spacer Mtg (4) |
|
- | |||||
| 4 | 665T092P01 | Spacer-front Frame (4) |
|
- | |||||
| 5 | 750T217P02 | Tube-oven Front |
|
- | |||||
| 6 | 740T499F01-18 | Trim-lower |
|
- | |||||
| 7 | 5303208218 | Cam-door-lh |
|
- | |||||
| 8 | 655T395F01 | Shield-oven Door-btm. |
|
- | |||||
| 9 | 591T038P09 | Rack-oven (2) |
|
- | |||||
| 10 | 5303013568 | Broiler Pan |
|
- | |||||
| 11 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 12 | 280T051P01-86 | Glide-oven Rack (2) |
|
- | |||||
| 13 | 3011544 | Bracket-rack Glide (4) |
|
- | |||||
| 14 | 750T206P01 | Tube-vent-catalyst |
|
- | |||||
| 15 | 244T048P02 | Filter-catalyst |
|
- | |||||
| 16 | 612T079P02 | Retainer-catalyst |
|
- | |||||
| 17 | 154T010F02 | Collar-lens Mtg |
|
- | |||||
| 18 | 269T040P05 | Gasket-lens Collar |
|
- | |||||
| 19 | 277T175P02 | Lens-light Cover |
|
- | |||||
| 20 | 08012146 | Switch-door |
|
- | |||||
| 21 | 259T027S08 | Front-frame (include Ref. 3 & 4) |
|
- | |||||
| 22 | 3011525 | Box-latch |
|
- | |||||
| 23 | 655T208F04-18 | Shield-wool-top |
|
- | |||||
| 24 | 695T095P08 | Switch-fan Safety |
|
- | |||||
| 25 | 5303011668 | Fan Blade |
|
- | |||||
| 26 | 072T819F01 | Bracket-support |
|
- | |||||
| 27 | 024T079F01-18 | Baffle-top Air Lh |
|
- | |||||
| 27 | 024T079F02-18 | Baffle-top Air Rh |
|
- | |||||
| 28 | 709T008P03 | Terminal Block |
|
- | |||||
| 29 | 08012153 | Retainer Bracket To Latch |
|
- | |||||
| 30 | 08012171 | Bracket-vent Actuator |
|
- | |||||
| 31 | 072T517F01 | Bracket-vent Actuator Mounting |
|
- | |||||
| 32 | 211T004S05 | Duct-air Vent |
|
- | |||||
| 33 | 558T031P02 | Plug-disconnect-female |
|
- | |||||
| 34 | 08014454 | Cover-instrument Top |
|
- | |||||
| 35 | 174T117W01 | Cover-instrument-rr |
|
- | |||||
| 36 | 072T274F01 | Bracket-fan Motor Mounting (2) |
|
- | |||||
| 37 | 08012183 | Fan Motor |
|
- | |||||
| 38 | 3011483 | Base-main Inner |
|
- | |||||
| 39 | 174T299F01 | Cover-plug |
|
- | |||||
| 40 | 024T080F01-18 | Baffle-side Air (2) |
|
- | |||||
| 41 | 036T030W05-18 | Base-main-outer |
|
- | |||||
| 42 | 675T041P03 | Spring-door Cam (2) |
|
- | |||||
| 43 | 072T476F01 | Bracket-spring Adj. (2) |
|
- | |||||
| 44 | 3014706 | Wrapper-side (inner) (2) |
|
- | |||||
| 45 | 08010579 | Screw-back To Oven Mtg (2) |
|
- | |||||
| 46 | 789T053P25 | Washer (2) |
|
- | |||||
| 47 | 805T009F05-18 | Wrapper-back Inner |
|
- | |||||
| 48 | 3014480 | Tube-oven Light |
|
- | |||||
| 49 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 50 | 154079601 | Hex Nut-ground Plt. Mtg. (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 51 | 636T097P08 | Screw-ground Pl. Mtg. |
|
- | |||||
| 52 | 5301506869 | Connector-conduit |
|
- | |||||
| 53 | 554T356F01 | Plate-grounding |
|
- | |||||
| 54 | 5308012121 | Bushing-insulation (2) |
|
- | |||||
| 56 | 008T502F01-18 | Angle-support Lh |
|
- | |||||
| 57 | 08010585 | Bracket-oven Light Mounting |
|
- | |||||
| 58 | 662T020P01 | Socket-oven Light |
|
- | |||||
| 59 | 5303206969 | Wrapper-back-outer |
|
- | |||||
| 60 | 5303014707 | Wrapper-side-outer (2) |
|
- | |||||
| 61 | 5308010597 | Knob Door Latch Handle |
|
- | |||||
| 62 | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 63 | 296T068P01 | Handle-latch Mech. |
|
- | |||||
| 64 | 5303207825 | Control-solenoid |
|
- | |||||
| 65 | 355T413S01 | Switch-actuating |
|
- | |||||
| 66 | 368T013S09 | Latch-door |
|
- | |||||
| 67 | 124T011P01 | Cap-vent Rod |
|
- | |||||
| 68 | 08012153 | Retainer-ring Clip |
|
- | |||||
| 69 | 789T022P03 | Washer-vent (2) |
|
- | |||||
| 70 | 675T059P01 | Spring-vent Closing |
|
- | |||||
| 71 | 08012150 | Rod Vent |
|
- | |||||
| 72 | 174T141F01 | Cover-vent |
|
- | |||||
| 73 | 5303203103 | Hex Nut |
|
- | |||||
| 74 | 145T110P01 | Clip-oven To Front Frame (8) |
|
- | |||||
| 25A | 08012199 | Set Screw-fan Blade Mounting (non-illustrated) |
|
- | |||||
| 56A | 008T502F02-18 | Angle-support Rh |
|
- | |||||
| 63A | 08016997 | Screw-handle Mtg. (2) (non-illustrated) |
|
- | |||||
| 66A | 675T053R01 | Spring-door Latch (non-illustrated) |
|
- | |||||
| 7A | 5303207693 | Cam-door-rh |
|
- |
