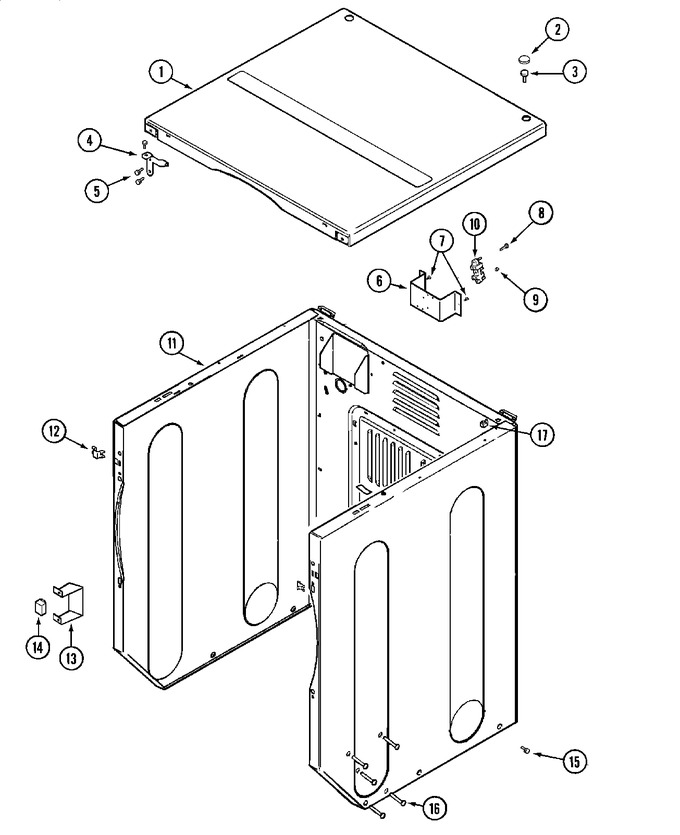

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	W11573574		Screw, Terminal Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
001	WP489128		Screw, Top & Terminal Cover   (Replaces: 22001996)	10			$ 9.79
001	33002058		Cover, Top (wht)	10	Appelez-nous	-
001	33002062		Backup, Strain Relief	10	Appelez-nous	-
001	Y314174		Cover, Terminal	10	Appelez-nous	-
002	33001997		Plug, Hole	10	Appelez-nous	-
003	22001883		Screw, Top Cover	10	Appelez-nous	-
004	33001998		Bracket, Top Cover (lt)	10	Appelez-nous	-
004	33001999		(rt)	10	Appelez-nous	-
005	W11573574		Screw, Top Cover Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
006	315471		Retainer, Wire	10	Appelez-nous	-
006	33002059		Bracket, Terminal Block	10	Appelez-nous	-
007	W11573574		Screw, Terminal Block Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
008	W11164114		Screw, Terminal Block   (Replaces: Y312209)	10			$ 3.76
009	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
010	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
011	22003646		Cabinet Assy. (wht. As Pk)	38	Appelez-nous	-
011	NLA		Cabinet (wht)	10	Appelez-nous	-
012	33001980		Clip, Access Panel	10			$ 7.64
013	Y313561		Screw, Relay Bracket	10			$ 5.27
013	33002002		Bracket, Relay (upr)	10	Appelez-nous	-
013	Y310632		Screw, Relay Bracket	10	Appelez-nous	-
014	206824		Relay	10	Appelez-nous	-
014	WP3177991		Screw, Relay   (Replaces: Y251119)	10		Immediately	$ 6.47
015	213007		Screw, Cabinet	10			$ 10.99
016	W11753795		Bolt, Carriage   (Replaces: 33001991)	10			$ 6.58
017	WP22001502		Fastener, U-nut   (Replaces: 22001502)	10			$ 8.26
