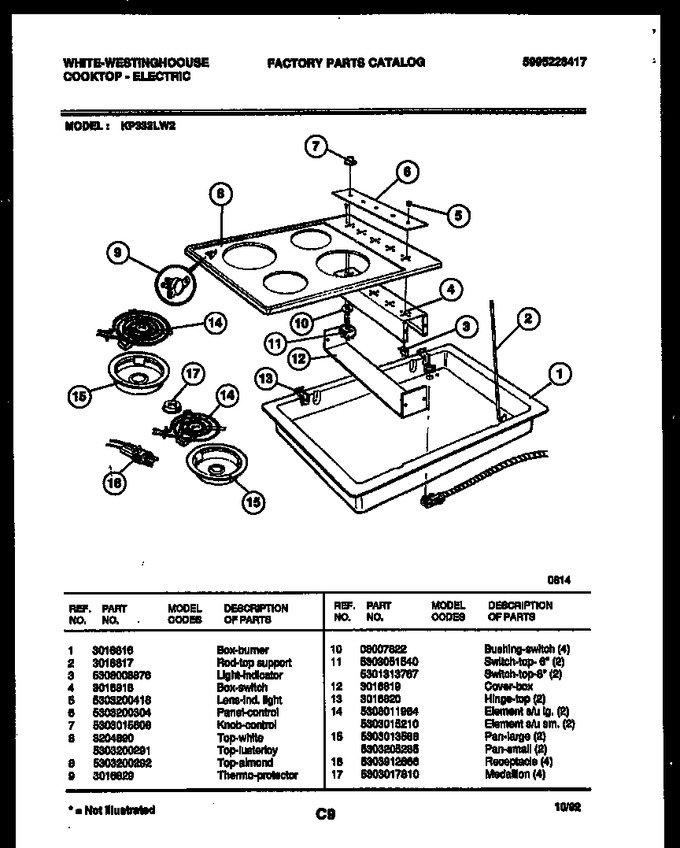

02 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016816 | Box-burner |
|
- | |||||
| 2 | 3016817 | Rod-top Support |
|
- | |||||
| 3 | 5308008876 | Light-indicator |
|
- | |||||
| 4 | 3016818 | Box-switch |
|
- | |||||
| 5 | 5303200418 | Lens-ind. Light |
|
- | |||||
| 6 | 5303200304 | Panel-control |
|
- | |||||
| 7 | 5303015608 | Knob-control |
|
- | |||||
| 8 | 5303200291 | Top-lusterloy |
|
- | |||||
| 9 | 3016829 | Thermo-protector |
|
- | |||||
| 10 | 08007822 | Bushing, Switch (4) |
|
- | |||||
| 11 | 5303051540 | Switch-top-6`` (2) |
|
- | |||||
| 12 | 3016819 | Cover-box |
|
- | |||||
| 13 | 3016820 | Hinge-top (2) |
|
- | |||||
| 14 | 5308011964 | Element S/u Lg (2) |
|
$ 209.08 | |||||
| 15 | 316048413 | Pan-large (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 16 | 5303935058 | Receptacle (4) (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 17 | 5303017810 | Medallion (4) |
|
- | |||||
| 11A | 5301313767 | Switch-top-8`` (2) |
|
- | |||||
| 14A | 5303015210 | Element S/u - Sm (2) |
|
- | |||||
| 15A | 5303205285 | Pan-small (2) |
|
- |
