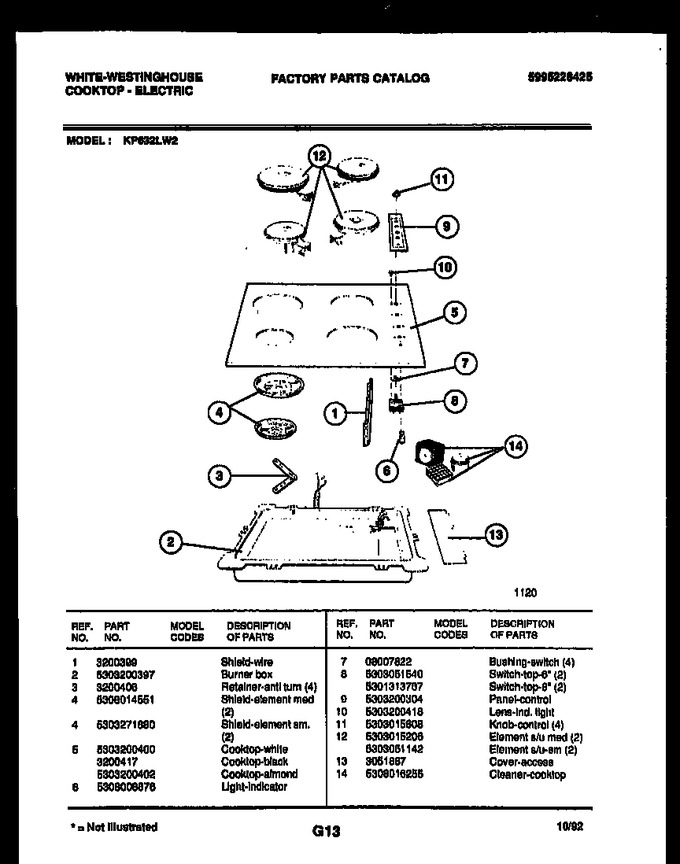

02 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200399 | Shield, Wire |
|
- | |||||
| 2 | 5303200397 | Burner Box |
|
- | |||||
| 3 | 3200406 | Retainer, Anti-turn (4) |
|
- | |||||
| 4 | 5303271880 | Shield-element Sm. (2) |
|
- | |||||
| 4 | 5308014551 | Shield-element Med (2) |
|
- | |||||
| 5 | 3200417 | Cooktop, Black |
|
- | |||||
| 5 | 5303200402 | Cooktop-almond |
|
- | |||||
| 5 | 5303200400 | Cooktop-white |
|
- | |||||
| 6 | 5308008876 | Light-indicator |
|
- | |||||
| 7 | 08007822 | Bushing, Switch (4) |
|
- | |||||
| 8 | 5303051540 | Switch-top-6`` (2) |
|
- | |||||
| 9 | 5303200304 | Panel-control |
|
- | |||||
| 10 | 5303200418 | Lens-ind. Light |
|
- | |||||
| 11 | 5303015608 | Knob-control (4) |
|
- | |||||
| 12 | 5303015206 | Element S/u Med (2) |
|
- | |||||
| 13 | 3051887 | Cover, Access |
|
- | |||||
| 14 | 5308016255 | Cleaner-cooktop |
|
$ 38.85 | |||||
| 12A | 5303051142 | Element S/u-sm (2) |
|
- | |||||
| 8A | 5301313767 | Switch-top-8`` (2) |
|
- |
