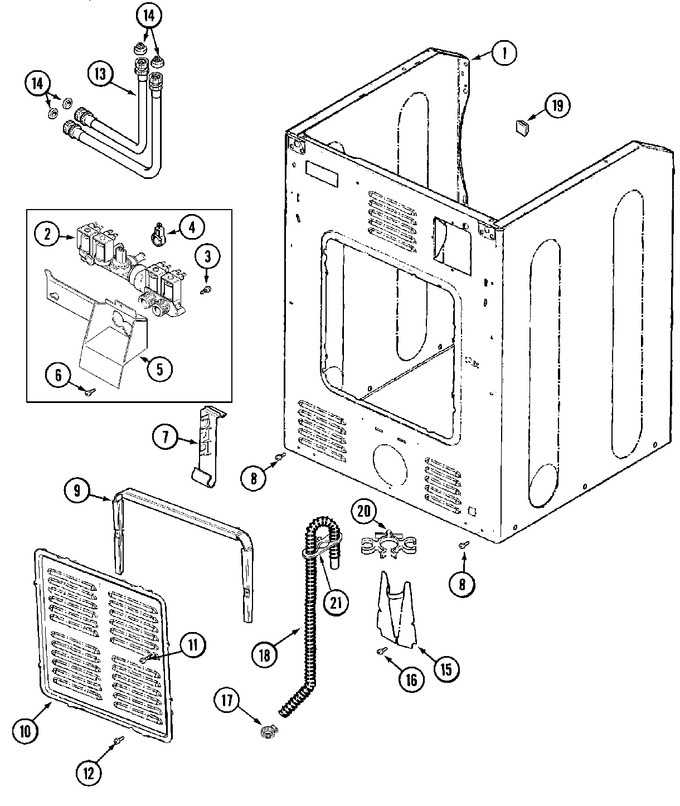

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	W11573574		Screw, Hinge   (Replaces: 22001995)	36		Immediately	$ 12.62
001	22002548		(cabinet Only)		Appelez-nous	-
001	22003367		Hinge, Plastic	36	Appelez-nous	-
001	NLA		Cabinet Assy. (wht)	10	Appelez-nous	-
002	WP22002903		Valve, Water   (Replaces: 22002903)	10			$ 216.02
003	22002436		Screw, Water Valve	10	Appelez-nous	-
004	WP489503		Clamp, Water Valve   (Replaces: 205161)	10		Immediately	$ 9.68
005	33002212		Bracket, Water Valve	10	Appelez-nous	-
006	WP489128		Screw, Water Valve Bracket   (Replaces: 22001996)	10			$ 9.79
007	33002213		Rack, Hose	10	Appelez-nous	-
008	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
009	22002022		Spacer, Access Panel	10	Appelez-nous	-
010	22002092		Panel, Access	10	Appelez-nous	-
011	WP67006908		Screw, Access Panel Spacer   (Replaces: 22002295)	10		Immediately	$ 7.16
012	WP489128		Screw, Access Panel   (Replaces: 22001996)	10			$ 9.79
013	W11629055		Hose, Inlet Assy   (Replaces: 208100)	10			$ 24.93
014	Y013783		Washer, Inlet Hose	10			$ 18.72
015	22002093		Cover, Drain Hose	10	Appelez-nous	-
016	W11573574		Screw, Drain Hose Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
017	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
018	12001807		Drain Hose Replacement(neptun)   (Replaces: 12001659)	10			$ 49.51
018	12001807		Hose, Drain   (Replaces: 22002891)	10			$ 49.51
018	22002893		Tie, Cable	10	Appelez-nous	-
019	NLA		Plug, Hole	10	Appelez-nous	-
020	22002932		Clip, Drain Hose	10	Appelez-nous	-
021	WP22002892		Retainer, Drain Hose   (Replaces: 22002892)	10			$ 76.85
