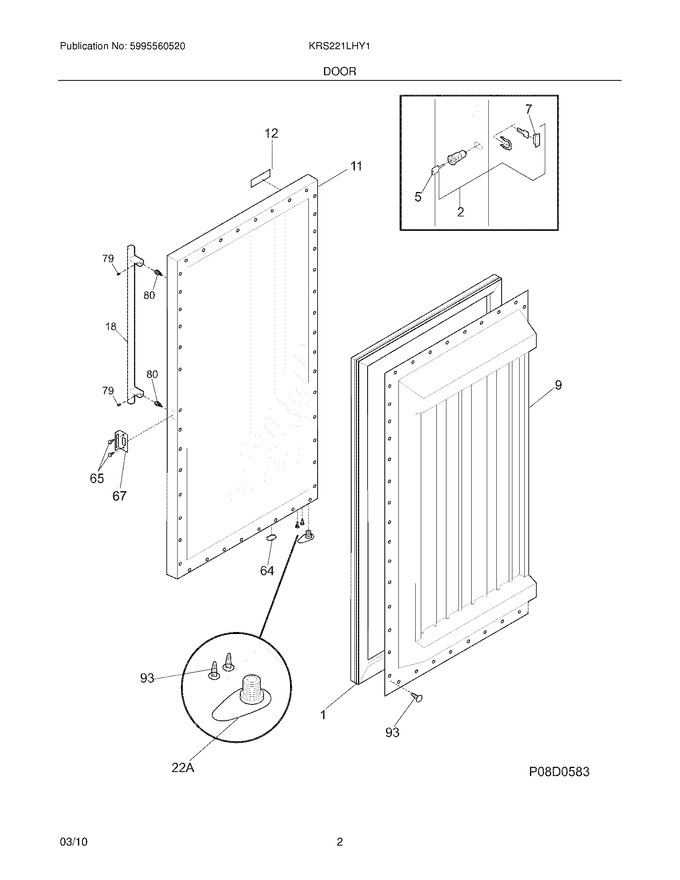

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506124		Gasket-door,black   (Replaces: 216522318)			Immediately	$ 204.56
7	216468700		Bezel-lock				$ 35.28
9	297071000		Panel-inner Door				$ 200.57
11	297255302		Panel-outer Door				$ 280.39
12	297146600		Nameplate,commercial		Appelez-nous	-
18	297314000		Handle				$ 143.88
64	216403700		Plug-button,hole Filler ,door Base   (Replaces: 216403701)				$ 58.12
65	216423501		Screw-retainer		Appelez-nous	-
67	216423000		Retainer-lock		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
22A	216335400		Bearing-hinge				$ 67.73
F2	216362700		Lock Assy				$ 90.30
F5	216362800		Key, Lock				$ 5.79
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34
NI	216923003		Plug Button,1/4`` ,grey ,(2)				$ 4.41
NI	297070901		Insulation,door		Appelez-nous	-
