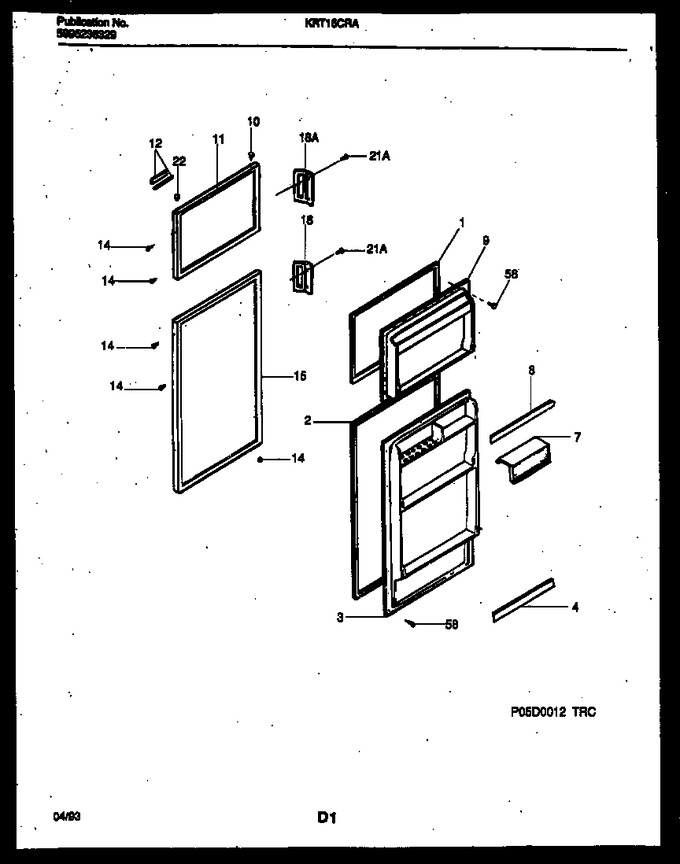

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288856 | Gasket-frzr Door, Magnetic, Almond |
|
$ 72.92 | |||||
| 2 | 5303297557 | Gasket-refr Door, Magnetic, Almond |
|
- | |||||
| 3 | 5318664801 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303282141 | Rack-door, (2) |
|
- | |||||
| 7 | 5303296972 | Door-dairy |
|
- | |||||
| 8 | 5303282142 | Rack-door |
|
- | |||||
| 9 | 5318669201 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916909 | Panel-frzr Door, Almond, W/ Insulation |
|
- | |||||
| 12 | 215527600 | Nameplate |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916911 | Panel-refr Door, Almond, W/ Insulation |
|
- | |||||
| 18 | 5303296976 | Handle-door, Black |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *30573 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 18A | 5303296975 | Handle-door, Black |
|
$ 98.28 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
