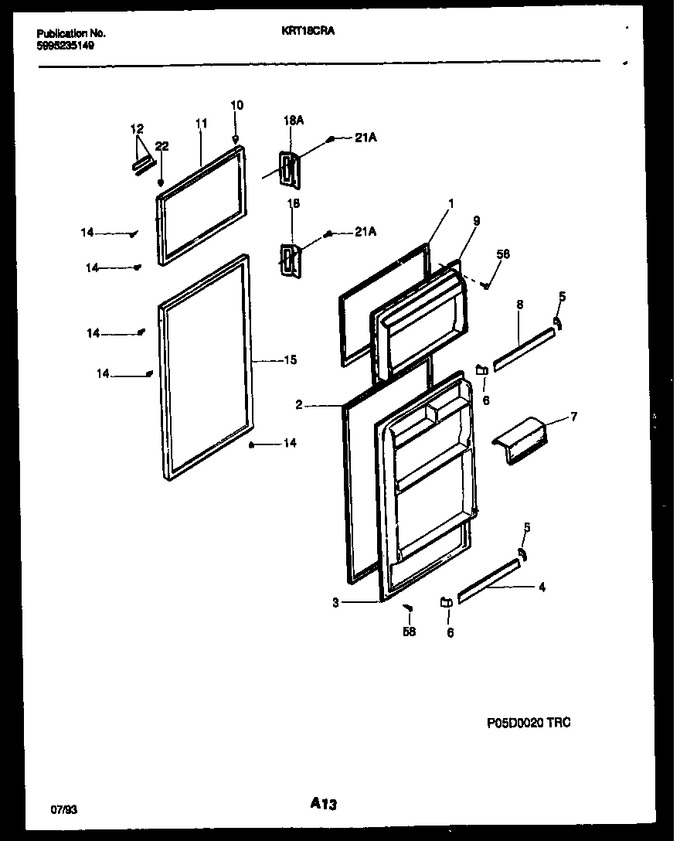

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276826 | Gasket-frzr Door, Magnetic, Almond |
|
$ 115.08 | |||||
| 2 | 5303275772 | Gasket-refr Door, Magnetic, Almond |
|
- | |||||
| 3 | 5318350701 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303273198 | Rack-door, Refr, (2) |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh |
|
$ 11.48 | |||||
| 7 | 5303296972 | Door-dairy |
|
- | |||||
| 8 | 5303273197 | Rack-door, Frzr |
|
- | |||||
| 9 | 5318350601 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916582 | Panel-frzr Door, Almond, W/ Insulation |
|
- | |||||
| 12 | 215527600 | Nameplate |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916587 | Panel-refr Door, Almond, W/ Insulation |
|
- | |||||
| 18 | 5303296976 | Handle-door, Black |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *30352 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 18A | 5303296975 | Handle-door, Black |
|
$ 98.28 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
