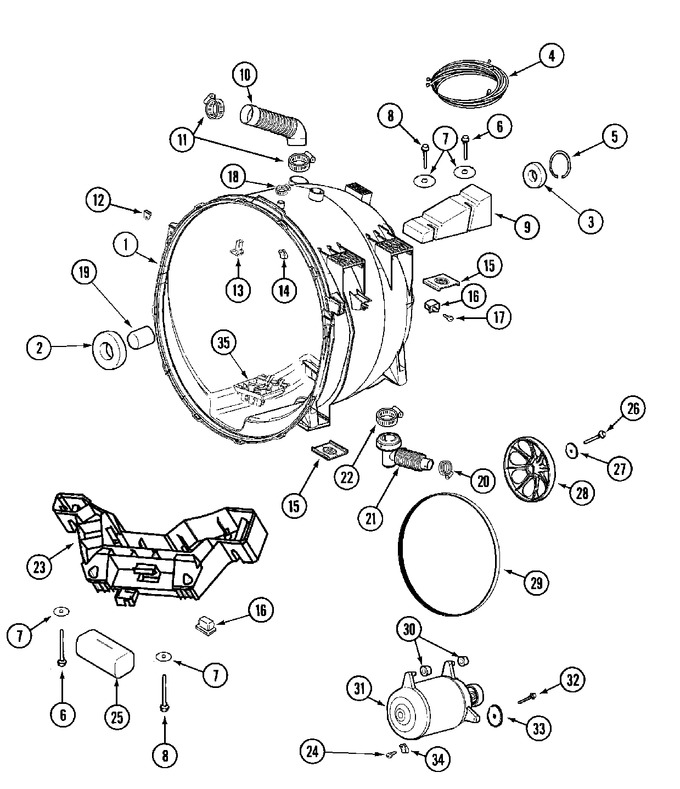

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22002006 | Clip, Unbalance Switch (attached To Outer Tub) | 10 |
|
- | ||||
| 001 | 22003413 | Outer Tub Assembly | 10 |
|
- | ||||
| 002 | 22002934 | Bearing, Front | 10 |
|
$ 37.86 | ||||
| 003 | WP22003441 | Bearing, Rear (Replaces: 22003441) | 10 |
|
Immediately | $ 19.35 | |||
| 004 | 22003290 | Jumper, Wire | 10 |
|
- | ||||
| 004 | 22004047 | Harness, Motor/motor Control | 71 |
|
- | ||||
| 004 | 33002216 | Wire Harness, Unbalance /comm | 10 |
|
- | ||||
| 005 | NLA | Ring, Retaining | 10 |
|
- | ||||
| 006 | 22003616 | Bolt (long) | 10 |
|
$ 6.51 | ||||
| 007 | NLA | Washer, Counter Balance | 10 |
|
- | ||||
| 008 | 22003616 | Bolt, Short | 10 |
|
$ 6.51 | ||||
| 009 | 22002102 | Weight, Counter Balance | 10 |
|
- | ||||
| 010 | WP22002083 | Hose, Injector (Replaces: 22002083) | 10 |
|
$ 124.55 | ||||
| 011 | WP616099 | Clamp, Injector Hose (Replaces: 22002052) | 10 |
|
Immediately | $ 7.03 | |||
| 012 | 22002103 | Clip, U | 10 |
|
- | ||||
| 013 | 22004310 | Deflector, Water (Replaces: 22002959) | 10 |
|
$ 13.68 | ||||
| 014 | 22002006 | Clip, Wire Harness & Outer Tub | 10 |
|
- | ||||
| 014 | 22002061 | Screw | 10 |
|
- | ||||
| 015 | 22002065 | Nut, Counter Balance | 10 |
|
- | ||||
| 016 | WP22002044 | Switch, Tub Displacement (Replaces: 22002044) | 10 |
|
$ 80.94 | ||||
| 017 | 22002061 | Screw, Displacement Switch | 10 |
|
- | ||||
| 018 | WP596669 | Clamp, Hose (Replaces: 202515) | 10 |
|
Immediately | $ 7.56 | |||
| 019 | 22002935 | Spacer, Bearing | 10 |
|
$ 26.90 | ||||
| 020 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 10 |
|
Immediately | $ 7.55 | |||
| 021 | 22003262 | Hose, Tub To Pump | 10 |
|
$ 27.27 | ||||
| 022 | WP696392 | Clamp, Sump Hose (Replaces: 22002053) | 10 |
|
$ 7.31 | ||||
| 023 | 22002579 | Weight Assembly (frt) | 10 |
|
- | ||||
| 024 | WP3351614 | Screw, Wire Harness Clip (Replaces: 22002019) | 10 |
|
Immediately | $ 6.26 | |||
| 025 | 22003225 | Cushion | 10 |
|
- | ||||
| 026 | WP22003937 | Screw, Spinner (Replaces: 22002057) | 10 |
|
$ 7.43 | ||||
| 027 | WP22003936 | Washer, Spinner Shaft (Replaces: 22002055) | 10 |
|
$ 7.20 | ||||
| 027 | WP22003936 | Washer (1 1/4``) (Replaces: 22003936) | 13 |
|
$ 7.20 | ||||
| 028 | 22002315 | Pulley, Spinner | 10 |
|
$ 157.26 | ||||
| 029 | 12001788 | Belt, Drive (Replaces: 22002313) | 10 |
|
Immediately | $ 37.69 | |||
| 030 | 22003329 | Isolator, Motor | 10 |
|
$ 36.83 | ||||
| 031 | 22003685 | Motor, Sr 60hz-120v | 10 |
|
- | ||||
| 031 | 22003856 | Motor, Variable Speed | 71 |
|
$ 322.00 | ||||
| 032 | 22003686 | Bolt, Motor | 10 |
|
$ 6.14 | ||||
| 033 | 22002320 | Washer, Belt Tension Bolt | 10 |
|
- | ||||
| 034 | WP308605 | Clip, Wire Harness (Replaces: 22002014) | 10 |
|
$ 10.08 | ||||
| 035 | 22002059 | Screw | 10 |
|
$ 5.33 | ||||
| 035 | 22003710 | Sump Cap W/ Labyrinth Feature | 10 |
|
$ 34.38 |
