SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Cooktop And Broiler Parts


05 - Drawer Parts


06 - Body Parts

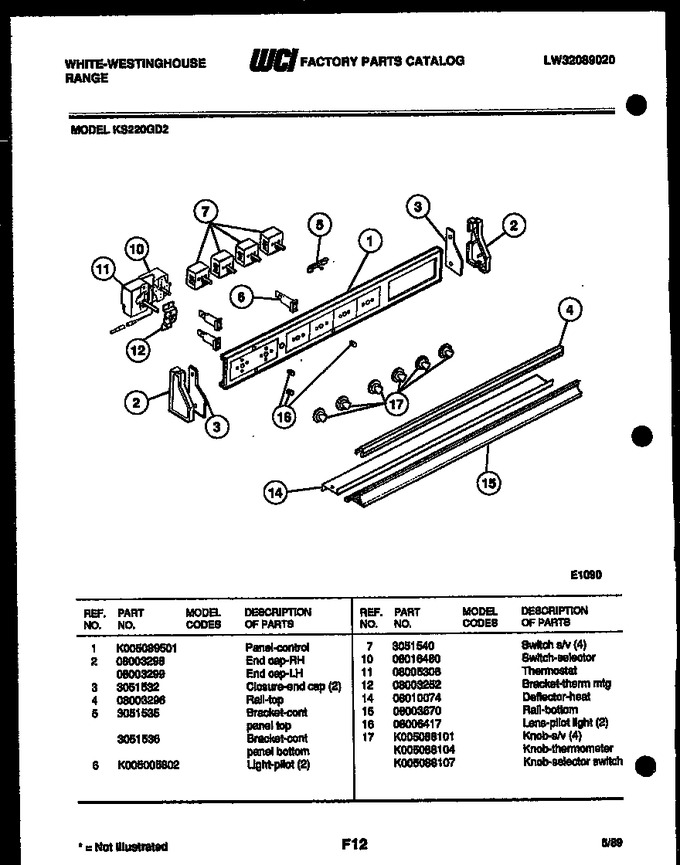

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	K005089501		Panel-control		Appelez-nous	-
2	08003298		End Cap Rh		Appelez-nous	-
3	3051532		Closure-end Cap (2)		Appelez-nous	-
4	08003296		Rail-top		Appelez-nous	-
5	3051535		Bracket-cont Panel Top		Appelez-nous	-
6	K005005802		Light-pilot (2)		Appelez-nous	-
7	3051540		Switch S/v (4)		Appelez-nous	-
10	08016480		Switch-selector		Appelez-nous	-
11	08005306		Thermostat		Appelez-nous	-
12	08003252		Bracket - Thermostat		Appelez-nous	-
14	08010074		Deflector-heat		Appelez-nous	-
15	08003670		Rail-bottom		Appelez-nous	-
16	08006417		Lens		Appelez-nous	-
17	K005088101		Knob-s/v (4)		Appelez-nous	-
17A	K005088104		Knob-thermometer		Appelez-nous	-
17B	K005088107		Knob-selector Switch		Appelez-nous	-
2A	08003299		End Cap-lh		Appelez-nous	-
5A	3051536		Bracket-cont Panel Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
