New Model Search:

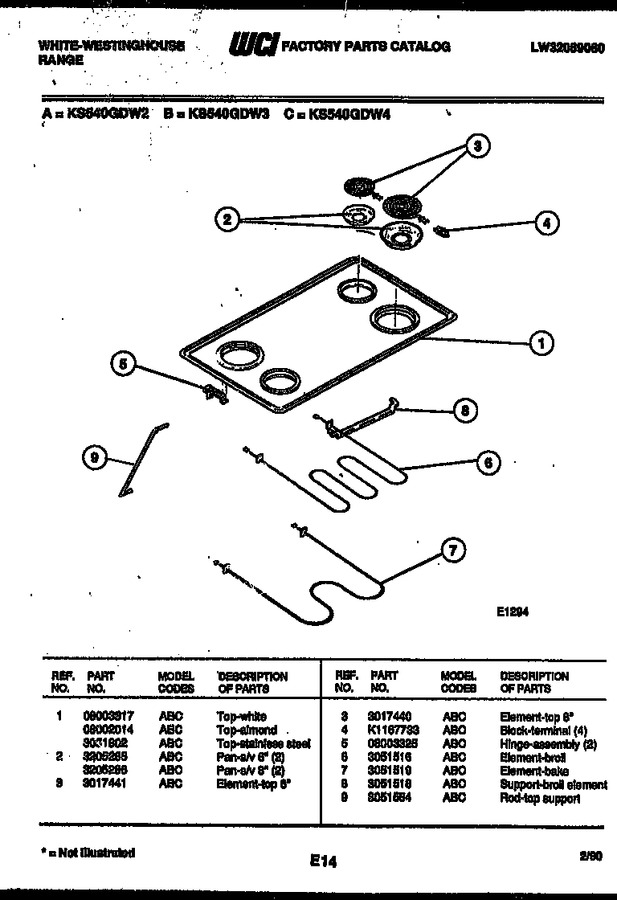

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08002014 | Top-almond |
|
- | |||||
| 1 | 08003317 | Top-white |
|
- | |||||
| 2 | 3205285 | Pan-s/v 6`` (2) |
|
- | |||||
| 3 | 3017440 | Element-top 8`` |
|
- | |||||
| 3 | 3017441 | Element-top 6`` |
|
- | |||||
| 4 | K1167733 | Block-terminal (4) |
|
- | |||||
| 5 | 08003325 | Hinge Assembly (2) |
|
- | |||||
| 6 | 3051516 | Element - Broil |
|
- | |||||
| 7 | 3051519 | Element - Bake |
|
- | |||||
| 8 | 3051518 | Support Broil Element |
|
- | |||||
| 9 | 3051554 | Rod-top Support |
|
- | |||||
| 1A | 3051802 | Top-stainless Steel |
|
- | |||||
| 2A | 3205286 | Pan-s/v 8`` (2) |
|
- |
