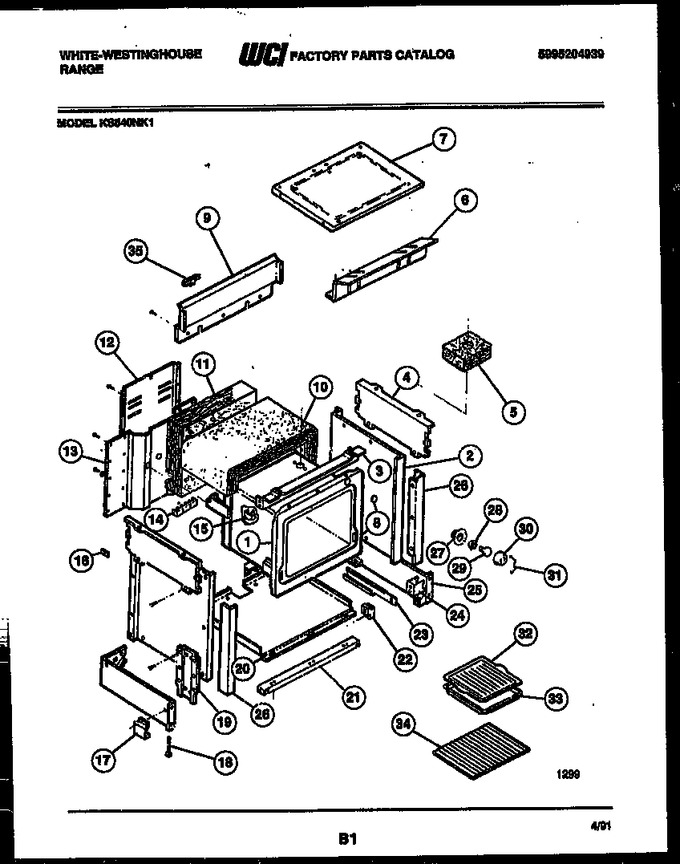

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206193 | Liner-oven |
|
- | |||||
| 2 | 08012226 | Shield-insulation (2) |
|
- | |||||
| 3 | 5308008693 | Bracket, Cooktop |
|
- | |||||
| 4 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 5 | 3051523 | Insulation-oven Vent |
|
- | |||||
| 6 | 5303271384 | Shield-wire |
|
- | |||||
| 7 | 5303051553 | Panel, Subtop |
|
- | |||||
| 8 | 5301314211 | Switch-door |
|
$ 95.29 | |||||
| 9 | 5308008689 | Back-upper |
|
- | |||||
| 10 | 3051521 | Insulation Wrap |
|
- | |||||
| 11 | 5303051630 | Insulation-back |
|
- | |||||
| 12 | 3204650 | Panel - Wire Cover |
|
- | |||||
| 13 | 3204649 | Back |
|
- | |||||
| 14 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 15 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 16 | 3051827 | Plate-filler |
|
- | |||||
| 17 | 08012736 | Shield-toe (2) |
|
- | |||||
| 18 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 19 | 5305080001 | Support-front (2) |
|
- | |||||
| 20 | 3205124 | Shield-bottom |
|
- | |||||
| 21 | 08012722 | Channel, Oven |
|
- | |||||
| 22 | 3051654 | Glide-front |
|
- | |||||
| 23 | 3204818 | Rail - Drwr Rh |
|
- | |||||
| 24 | 3051653 | Spacer-drwr Glide (2) |
|
- | |||||
| 25 | 5301324082 | Panel-side Rh |
|
- | |||||
| 26 | 3051777 | Trim, Oven Front (2) |
|
- | |||||
| 27 | 5303271606 | Housing-light |
|
- | |||||
| 28 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 29 | 40A15 | Bulb-light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 30 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 31 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 32 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 33 | 5303013568 | Pan-broiler |
|
- | |||||
| 34 | 5303131973 | Rack |
|
- | |||||
| 35 | 3051800 | Brkt, Hng Support |
|
- | |||||
| *44174 | 3934058 | Anti-tip Kit |
|
$ 98.75 | |||||
| 23A | 3204819 | Rail - Drwr Lh |
|
- | |||||
| 25A | 5301324083 | Panel-side Lh |
|
- |
