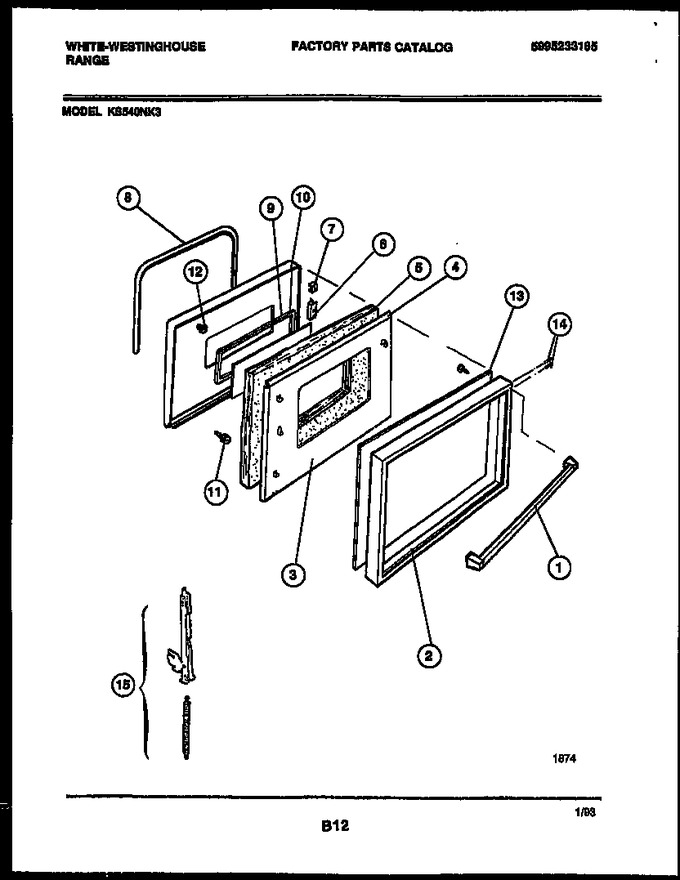

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207187 | Handle |
|
- | |||||
| 2 | 5303206826 | Frame-door |
|
- | |||||
| 3 | 3017200 | Panel, Airwash |
|
- | |||||
| 4 | 5303284325 | Insulation |
|
- | |||||
| 5 | 5301325511 | Glass, Inner |
|
- | |||||
| 6 | 3205108 | Retainer - Inner Glass (4) |
|
- | |||||
| 7 | 5305297101 | Spacer (2) |
|
- | |||||
| 8 | 5308003268 | Gasket |
|
- | |||||
| 9 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 10 | 5303293898 | Liner-door |
|
- | |||||
| 11 | 5303131771 | Bumper-window Bot. |
|
- | |||||
| 12 | 5301324812 | Bumper-window Top |
|
- | |||||
| 13 | 5308012546 | Glass, Outer |
|
- | |||||
| 14 | 5303051860 | Screw-handle (2) |
|
- | |||||
| 15 | 5308014248 | Door Hinge Assy |
|
- |
