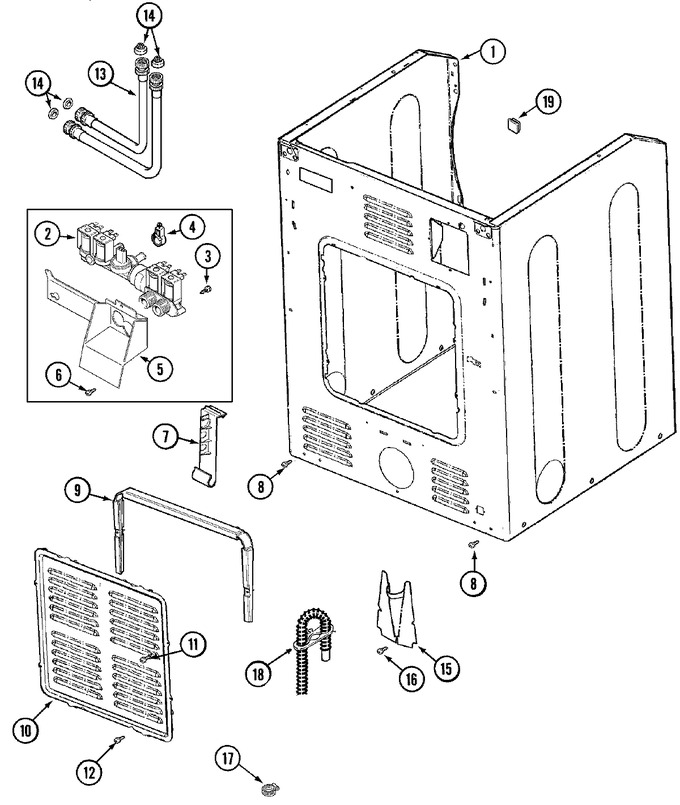

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003582		Cabinet, Assy. (wht-as Pk)	36	Appelez-nous	-
1	22003367		Hinge, Plastic	36	Appelez-nous	-
1	213007		Screw, Cabinet	38			$ 10.99
1	W11573574		Screw   (Replaces: 22001995)	36		Immediately	$ 12.62
1	22002548		Cabinet Assy. (wht)	10	Appelez-nous	-
2	WP22002437		Valve, Water   (Replaces: 22002437)	10		Immediately	$ 216.36
3	22002436		Screw	10	Appelez-nous	-
4	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
5	33002212		Bracket, Water Valve	10	Appelez-nous	-
6	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
7	33002213		Rack, Hose	10	Appelez-nous	-
8	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
9	22002022		Spacer, Access Panel	10	Appelez-nous	-
10	22004355		Rear Access Panel	78	Appelez-nous	-
10	22002092		Panel, Access	10	Appelez-nous	-
11	WP67006908		Screw   (Replaces: 22002295)	10		Immediately	$ 7.16
11	WP489128		Screw   (Replaces: 22002925)	78			$ 9.79
12	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
13	WP89503		Hose Assy., Inlet   (Replaces: 33002214)	10		Immediately	$ 21.68
14	Y013783		Gasket, Inlet Hose	10			$ 18.72
15	22002093		Cover, Drain Hose	10	Appelez-nous	-
16	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
17	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
18	12001807		Hose, Drain   (Replaces: 22002891)	10			$ 49.51
18	22002893		Tie, Cable	10	Appelez-nous	-
18	12001807		Drain Hose Replacement(neptun)   (Replaces: 12001659)	10			$ 49.51
18	WP22002892		Retainer, Drain Hose   (Replaces: 22002892)	10			$ 76.85
19	215950		Plug, Hole	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
