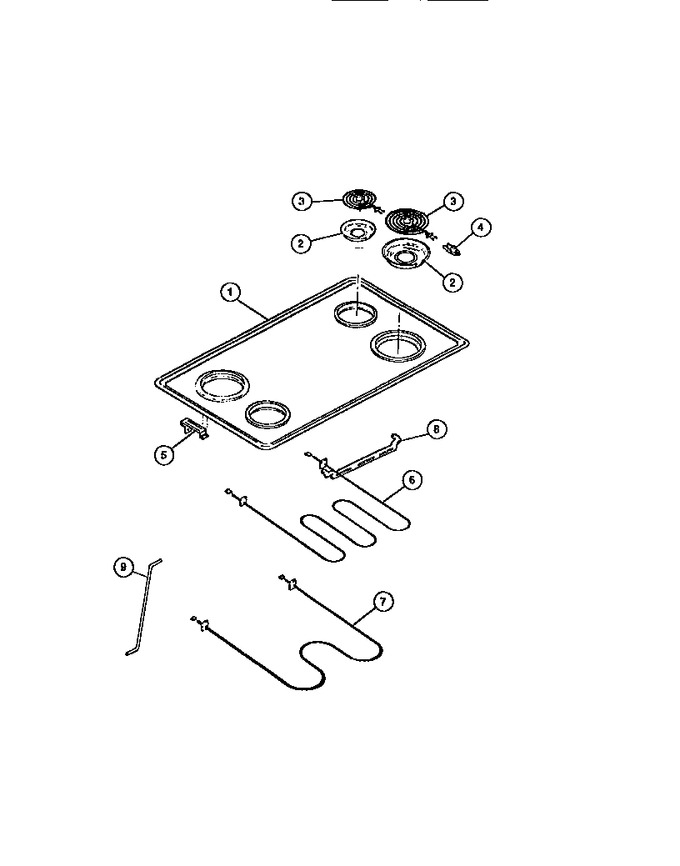

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308002014		Top, Almond		Appelez-nous	-
2	5303205285		Pan, Surface Unit, 6`` (2)		Appelez-nous	-
3	5303017441		Element, Top 6``		Appelez-nous	-
4	5303935058		Block-terminal (4)   (Replaces: 5301167733)			Immediately	$ 13.81
5	5308003325		Hinge Assembly (2)		Appelez-nous	-
6	5303051516		Element-broil				$ 189.23
7	5303051519		Element-bake			Immediately	$ 44.70
8	3051518		Support Broil Element		Appelez-nous	-
9	3051554		Rod Top Support (2)		Appelez-nous	-
2A	5303205286		Pan, Surface Unit, 8`` (2)		Appelez-nous	-
3A	5303017440		Element, Top 8``		Appelez-nous	-
