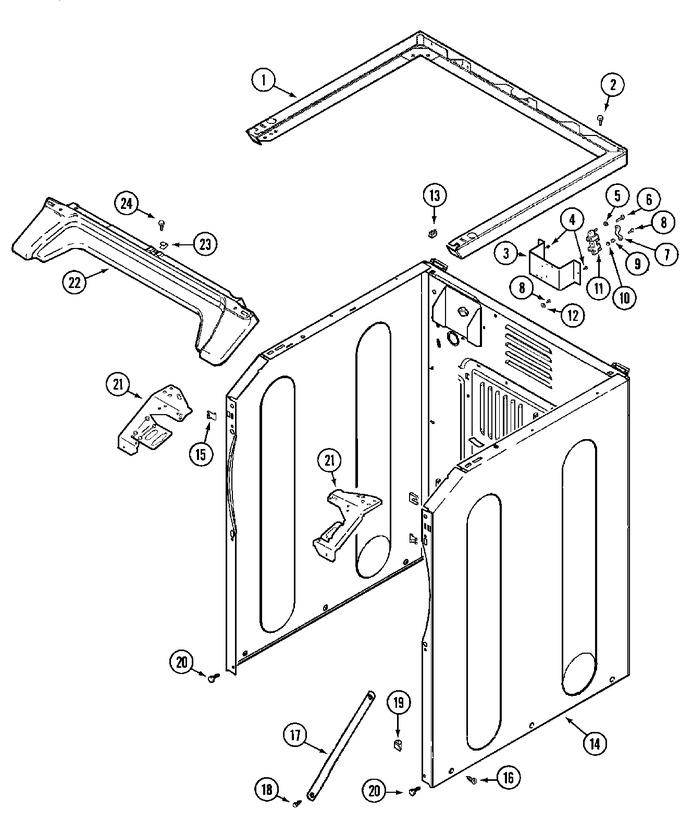

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33002005 | Support (wht) | 10 |
|
- | ||||
| 002 | 22001883 | Screw, Support | 10 |
|
- | ||||
| 003 | NLA | Bracket, Terminal Block----na | 10 |
|
- | ||||
| 004 | W11573574 | Screw, Terminal Block Bracket (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 005 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 | ||||
| 006 | W11164114 | Screw, Terminal Block (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 007 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 008 | NLA | Screw, Ground Strap | 10 |
|
- | ||||
| 009 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 010 | WP311093 | Washer, Brass (Replaces: 311093) | 10 |
|
$ 7.25 | ||||
| 011 | W11705611 | Block, Terminal (Replaces: 33001244) | 10 |
|
$ 87.34 | ||||
| 012 | NLA | Washer, Ground Lug | 10 |
|
- | ||||
| 013 | WP22001502 | Fastener, U-nut (Replaces: 22001502) | 10 |
|
$ 8.26 | ||||
| 014 | 22003639 | Cabinet Assy. (wht As Pk) | 10 |
|
- | ||||
| 014 | 33002626 | Cabinet, Assy. (wht-as Pk) | 36 |
|
- | ||||
| 014 | NLA | Cabinet (wht) | 10 |
|
- | ||||
| 015 | 22002049 | Clip, Front Panel | 10 |
|
$ 8.40 | ||||
| 016 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 016 | 213007 | Screw, Cabinet (truss) (Replaces: 22003409) | 10 |
|
$ 10.99 | ||||
| 017 | 22002259 | Brace, Cross | 10 |
|
- | ||||
| 018 | W11573574 | Screw, Cross Brace (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 019 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 020 | W11573574 | Screw, Cabinet (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 021 | 33002009 | Bracket, Corner (lt) | 10 |
|
- | ||||
| 021 | 33002010 | Bracket, Corner (rt) | 10 |
|
- | ||||
| 021 | 33002095 | Bracket, Corner (lt) | 10 |
|
- | ||||
| 021 | 33002096 | Bracket, Corner (rt) | 10 |
|
- | ||||
| 022 | 33002011 | Cover, Access (wht) | 10 |
|
- | ||||
| 023 | 33002013 | Fastener, Access Cover | 10 |
|
- | ||||
| 024 | W11573574 | Screw, Access Cover (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 025 | 33002078 | Wire Harness, Main (lwr) | 10 |
|
- | ||||
| 025 | NLA | Wire Harness, Main (lwr) | 10 |
|
- | ||||
| 026 | 33001989 | Retainer, Wire Harness | 10 |
|
- |
