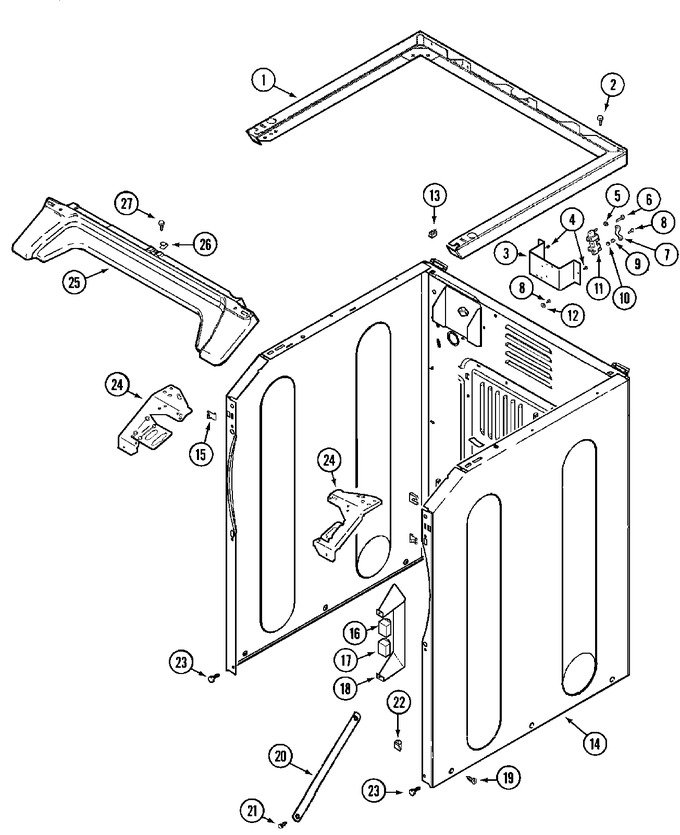

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33002472 | Support (wht) | 10 |
|
- | ||||
| 001 | 33002446 | Support, Cabinet (bsq) | 10 |
|
- | ||||
| 002 | 22001883 | Screw, Support | 10 |
|
- | ||||
| 003 | NLA | Bracket, Terminal Block----na | 10 |
|
- | ||||
| 004 | W11573574 | Screw, Terminal Block Bracket (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 005 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 | ||||
| 006 | W11164114 | Screw, Terminal Block (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 007 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 008 | NLA | Screw, Ground Strap | 10 |
|
- | ||||
| 009 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 010 | WP311093 | Washer, Brass (Replaces: 311093) | 10 |
|
$ 7.25 | ||||
| 011 | W11705611 | Block, Terminal (Replaces: 33001244) | 10 |
|
$ 87.34 | ||||
| 012 | NLA | Washer, Ground Lug | 10 |
|
- | ||||
| 013 | WP22001502 | Fastener, U-nut (Replaces: 22001502) | 10 |
|
$ 8.26 | ||||
| 014 | NLA | Cabinet Assy (wht-as Pk) | 10 |
|
- | ||||
| 015 | 22002049 | Clip, Front Panel | 10 |
|
$ 8.40 | ||||
| 016 | 206824 | Relay, Spst 24vdc | 10 |
|
- | ||||
| 016 | WP3177991 | Screw, Relay (Replaces: Y251119) | 10 |
|
Immediately | $ 6.47 | |||
| 017 | 306398 | Relay, Heater | 10 |
|
$ 41.78 | ||||
| 017 | WP3177991 | Screw, Heater Relay (Replaces: Y251119) | 10 |
|
Immediately | $ 6.47 | |||
| 018 | Y313561 | Screw, Relay Bracket | 10 |
|
$ 5.27 | ||||
| 018 | 314627 | Bracket, Relay | 10 |
|
- | ||||
| 019 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 019 | 213007 | Screw, Cabinet (truss) (Replaces: 22003409) | 36 |
|
$ 10.99 | ||||
| 020 | 33002014 | Brace, Cross | 10 |
|
- | ||||
| 021 | W11573574 | Screw, Cross Brace (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 022 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 023 | W11573574 | Screw, Cabinet (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 024 | 33002813 | Corner Bracket - Lh Cabinet | 10 |
|
- | ||||
| 024 | 33002814 | Bracket, Corner (rt) | 10 |
|
- | ||||
| 025 | 22002664 | Cover, Access (bsq) | 10 |
|
- | ||||
| 025 | 33002011 | Cover, Access (wht) | 10 |
|
- | ||||
| 026 | 33002037 | Fastener, Access Cover | 10 |
|
- | ||||
| 027 | W11573574 | Screw, Access Cover (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 028 | 33002047 | Wire Harness, Main (lwr) | 10 |
|
- | ||||
| 029 | 33001989 | Retainer, Wire Harness | 10 |
|
- |
