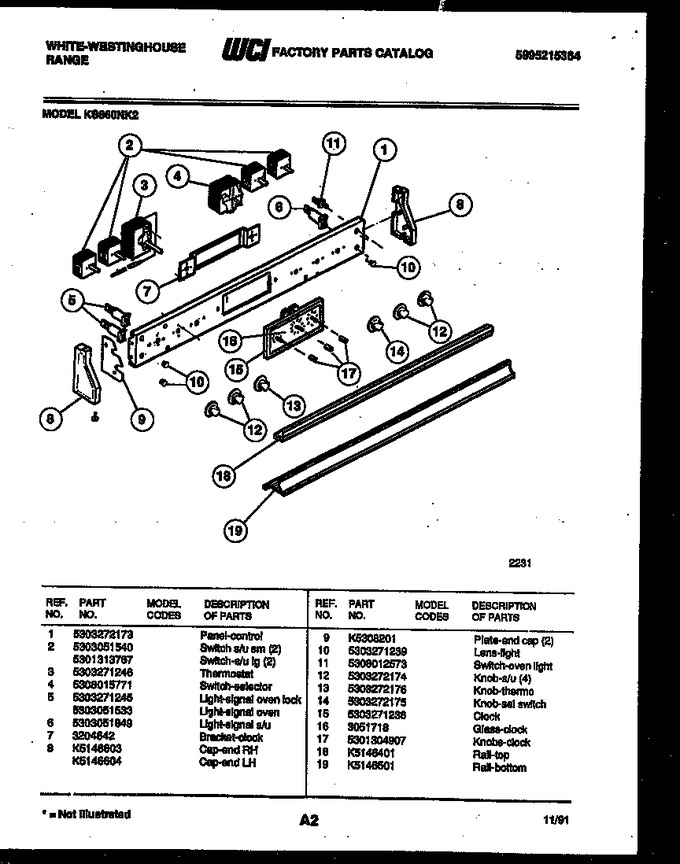

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272173 | Panel-control |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5303271246 | Thermostat |
|
- | |||||
| 4 | 5308015771 | Switch-selector |
|
- | |||||
| 5 | 5303271245 | Light-signal Oven Lock |
|
- | |||||
| 6 | 5303051849 | Light-signal S/u |
|
- | |||||
| 7 | 3204642 | Bracket-clock |
|
- | |||||
| 8 | K5146603 | Cap-end-rh |
|
- | |||||
| 9 | K5308201 | Plate-end Cap (2) |
|
- | |||||
| 10 | 5303271239 | Lens-light |
|
- | |||||
| 11 | 5308012573 | Switch, Oven Light |
|
- | |||||
| 12 | 5303272174 | Knob-s/u (4) |
|
- | |||||
| 13 | 5303272176 | Knob-thermo |
|
- | |||||
| 14 | 5303272175 | Knob-sel Switch |
|
- | |||||
| 15 | 5303271236 | Clock |
|
- | |||||
| 16 | 3051718 | Glass-clock |
|
- | |||||
| 17 | 5301304907 | Knobs-clock |
|
- | |||||
| 18 | K5146401 | Rail-top |
|
- | |||||
| 19 | K5146501 | Rail-bottom |
|
- | |||||
| 2A | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 5A | 5303051533 | Light-signal Oven |
|
$ 53.81 | |||||
| 8A | K5146604 | Cap-end-lh |
|
- |
