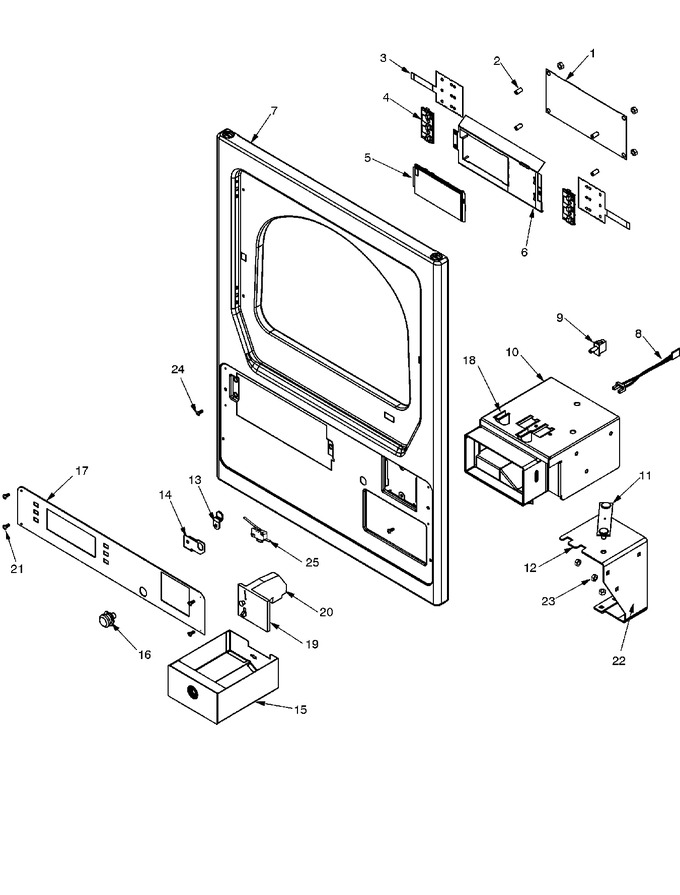

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33003008 | Board, Control (Replaces: 33002608) | 10 |
|
- | ||||
| 001 | 33003008 | Board, Control Sub (Replaces: 33002951) | 11 |
|
- | ||||
| 001 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 002 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 003 | WPW10133278 | Switch, Membrane (Replaces: 33002507) | 10 |
|
$ 104.73 | ||||
| 004 | WPW10424308 | Button, Push (Replaces: 33002863) | 10 |
|
Immediately | $ 18.38 | |||
| 005 | WPW10133268 | Cover, Display (Replaces: 33002150) | 10 |
|
$ 63.37 | ||||
| 006 | 33002155 | Plate, Control Mounting | 10 |
|
- | ||||
| 007 | 33002909 | Panel, Front Upper Export Pd | 10 |
|
- | ||||
| 008 | WPW10247389 | Switch Assy., Optic (Replaces: 22001965) | 10 |
|
Immediately | $ 104.31 | |||
| 008 | WP3395530 | Screw (Replaces: 314665) | 10 |
|
$ 6.93 | ||||
| 009 | 22003064 | Switch, Sensor - Export | 10 |
|
- | ||||
| 010 | 22004157 | Assy, Coin Vault----na | 10 |
|
- | ||||
| 011 | 22001810 | Strap, Mounting | 10 |
|
- | ||||
| 011 | 910181 | Lock Washer | 10 |
|
- | ||||
| 012 | 33002763 | Vault Mounting Bracket | 10 |
|
- | ||||
| 013 | W11165684 | Locking Cam (Replaces: 213750) | 10 |
|
$ 8.20 | ||||
| 014 | 33001982 | Bracket, Switch Mounting | 10 |
|
- | ||||
| 015 | 22004158 | Assy, Coin Box | 10 |
|
- | ||||
| 016 | WPW10133264 | Lock, Access Door (Replaces: 22002349) | 10 |
|
$ 125.12 | ||||
| 017 | 33002828 | Facia, Comm. - Pd D/d | 10 |
|
- | ||||
| 018 | 314635 | Coin Chute | 10 |
|
- | ||||
| 019 | 33002644 | Dual Faceplate Assembly | 10 |
|
- | ||||
| 019 | 33002647 | Single Faceplate Assembly | 10 |
|
- | ||||
| 020 | W11643135 | Dual Coin Drop Assy-canada (Replaces: 22004113) | 10 |
|
$ 512.07 | ||||
| 020 | 22004114 | Coin Drop Greenwald (can).25 | 10 |
|
- | ||||
| 020 | 33002646 | Coin Drop-canada (1.00) | 10 |
|
- | ||||
| 021 | WPW10131119 | Screw, Torx (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 022 | W11753795 | Bolt, Carriage (Replaces: 33001991) | 10 |
|
$ 6.58 | ||||
| 023 | Y052734 | Nut | 10 |
|
- | ||||
| 024 | 33002051 | Screw, Torx | 10 |
|
- | ||||
| 025 | 22002536 | Switch, Sensor | 10 |
|
- |
