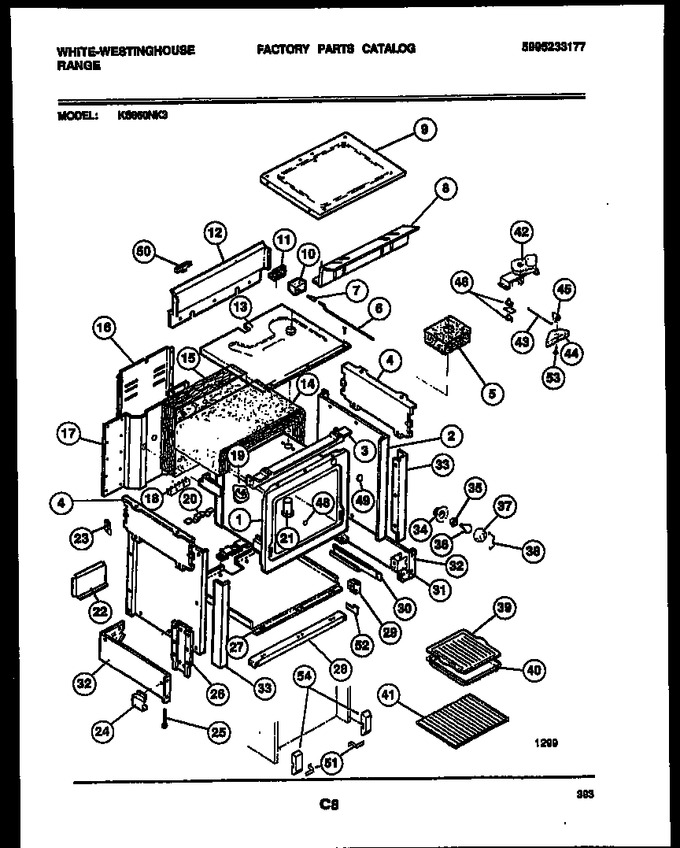

02 - Backguard
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303293899 | Liner-oven |
|
- | |||||
| 2 | 08012226 | Shield-insulation (2) |
|
- | |||||
| 3 | 5303293413 | Bracket-cooktop |
|
- | |||||
| 4 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 5 | 3008673 | Insulation-oven Vent |
|
- | |||||
| 6 | 3051645 | Push Rod-switch |
|
- | |||||
| 7 | 08007444 | End-push Rod |
|
- | |||||
| 8 | 316039801 | Shield-wire |
|
- | |||||
| 9 | 5303293414 | Panel-subtop |
|
- | |||||
| 10 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 11 | 3051643 | Bracket, Door Switch |
|
- | |||||
| 12 | 5303286183 | Back-tange Upper |
|
- | |||||
| 13 | 5303294767 | Retainer-insulation |
|
- | |||||
| 14 | 3203029 | Oven Insulation-wrap |
|
- | |||||
| 15 | 5303051630 | Oven Back Insulation |
|
- | |||||
| 16 | 5303051856 | Wiring Cover |
|
- | |||||
| 17 | 5303280344 | Back-range |
|
- | |||||
| 18 | 5304409888 | Main-terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 19 | 3051552 | Thermostat Bulb Brkt |
|
- | |||||
| 20 | 5301145190 | Plate-mounting |
|
- | |||||
| 21 | 3051773 | Tube-vent Assy |
|
- | |||||
| 22 | 3051634 | Channel, Air |
|
- | |||||
| 23 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 24 | 08012736 | Shield-toe (2) |
|
- | |||||
| 25 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 26 | 3051776 | Support-front (2) |
|
- | |||||
| 27 | 3205124 | Shield-bottom |
|
- | |||||
| 28 | 08012722 | Channel, Oven |
|
- | |||||
| 29 | 3051654 | Drawer Glide |
|
- | |||||
| 30 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 31 | 3051653 | Spacer-drawer Glide (2) |
|
- | |||||
| 32 | 5303280349 | Panel-side Rh |
|
- | |||||
| 33 | 3051777 | Trim, Oven Front (2) |
|
- | |||||
| 34 | 3051511 | Housing-light |
|
$ 60.22 | |||||
| 35 | 316116400 | Oven Lamp Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 36 | 3201908 | Oven Lamp |
|
- | |||||
| 37 | 5304524341 | Oven Lamp Lens (Replaces: 3201911) |
|
Immediately | $ 15.61 | ||||
| 38 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 39 | 5303293415 | Insert-broiler Pan |
|
- | |||||
| 40 | 5303293416 | Pan-broiler |
|
- | |||||
| 41 | 5303281625 | Rack Oven |
|
- | |||||
| 42 | 5308015743 | Motor Latch Assy |
|
$ 211.92 | |||||
| 43 | 3051649 | Tie Bar |
|
- | |||||
| 44 | 3051647 | Latch Housing |
|
- | |||||
| 45 | 3051648 | Latch-door |
|
- | |||||
| 46 | 5308006582 | Switch-top |
|
- | |||||
| 48 | 3204825 | Plug, Button |
|
- | |||||
| 49 | 3204817 | Plub-button |
|
- | |||||
| 50 | 3051800 | Brkt, Hng Support |
|
- | |||||
| 51 | 5303280340 | Retainer-counter-weight |
|
- | |||||
| 52 | 3051810 | Retainer-door (2) |
|
- | |||||
| 53 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 54 | 5303280341 | Cement-counter-weight |
|
- | |||||
| *73950 | 19100210114 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| 30A | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 32A | 5303280351 | Panel-side Lh |
|
- | |||||
| 41A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 51A | 3934058 | Anti-tip Kit (non-illustrated) |
|
$ 98.75 |
