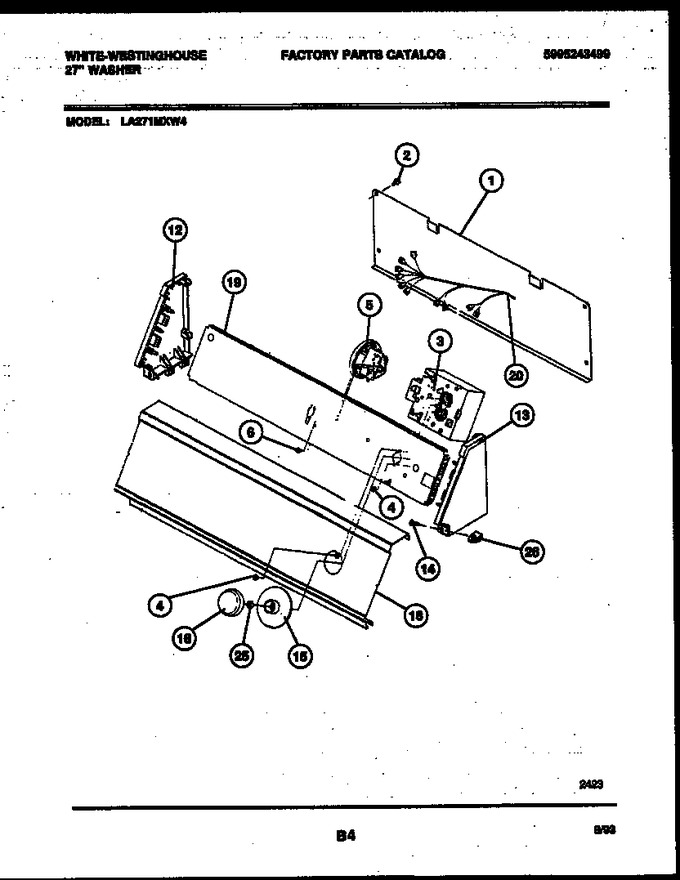

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 131052100 | Screw |
|
- | |||||
| 3 | 5303271758 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131077100 | Switch - Pressure |
|
- | |||||
| 6 | 5303015671 | Screw |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131118501 | Dial |
|
- | |||||
| 16 | 131118401 | Knob - Timer |
|
$ 58.76 | |||||
| 18 | 131126100 | Panel - Control |
|
- | |||||
| 19 | 131157806 | Bracket Controls |
|
- | |||||
| 20 | 131166000 | Harness |
|
- | |||||
| 25 | 5308015493 | Spacer-shaft |
|
$ 14.36 | |||||
| 26 | 5300503065 | Clip |
|
$ 6.09 | |||||
| *80342 | 5303281035 | Ground Screw-body |
|
- | |||||
| *80342 | 08001689 | Screw |
|
- |
