SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts

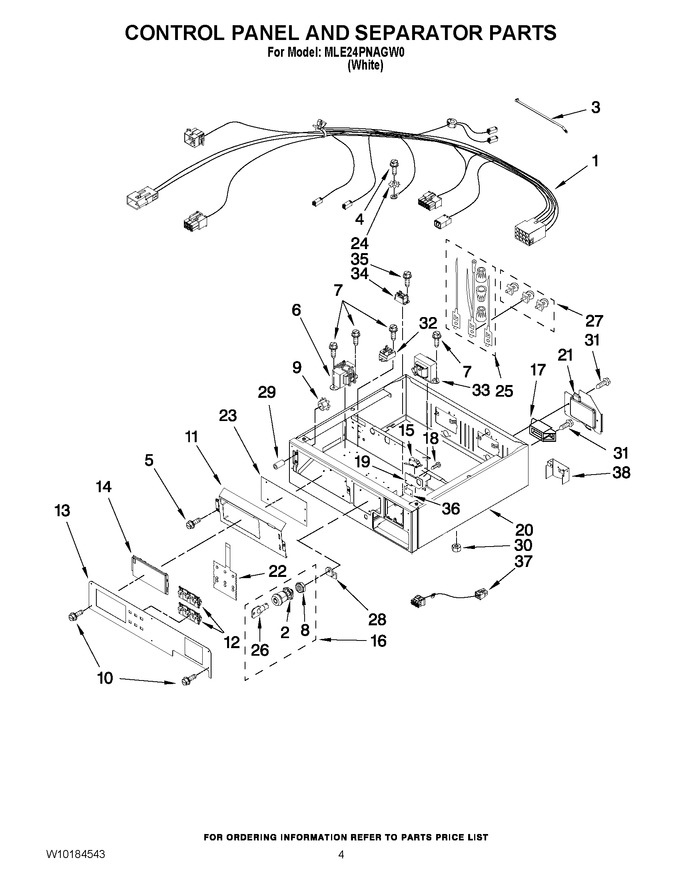

03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11352539		Harness, Collar   (Replaces: W10169694)		Appelez-nous	-
2	W11395752		Hex Nut, 3/4-27   (Replaces: W10139762)				$ 11.74
3	WPW10155270		Tie Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: 697776)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	W10080820		Screw		Appelez-nous	-
8	WPW10133264		Hex-nut 9/32 - 28   (Replaces: W10177242)				$ 125.12
9	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10131119)				$ 6.26
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 18.38
13	W10135193		Facia Console		Appelez-nous	-
14	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
15	W10133281		Switch, Service Access		Appelez-nous	-
16	WPW10133264		Lock Assembly   (Replaces: W10133264)				$ 125.12
17	W11690172		Terminal-block   (Replaces: W10237321)				$ 340.88
18	3400408		Screw		Appelez-nous	-
19	W10160652		Bracket-switch		Appelez-nous	-
20	W10165714		Collar		Appelez-nous	-
21	W10684155		Cover, Terminal Block   (Replaces: W10196677)		Appelez-nous	-
22	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 104.73
23	WPW10167611		Control Board   (Replaces: W10167611)				$ 376.80
24	3390443		Retainer, Terminal		Appelez-nous	-
25	279318		Terminal Brass Tinned (3) (includes Item. 35 )			Immediately	$ 90.89
26	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
27	279393		Terminal-block Screw Kit (for Terminal Block			Immediately	$ 42.63
28	W10233256		Locking Cam				$ 66.19
29	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
30	WPW10080190		Nut, 3/8-16   (Replaces: W10080190)			Immediately	$ 7.64
31	W11676450		Screw   (Replaces: 3400000)				$ 12.65
32	W10133335		Relay-spt				$ 40.14
33	W10237958		Transformer 240 - 120 Vac		Appelez-nous	-
34	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
35	WP489464		Screw, 8-18 X 1/2   (Replaces: W10080700)			Immediately	$ 7.05
36	W10151156		Shield, Sensor Switch		Appelez-nous	-
37	W10111027		Jumper, Transformer				$ 41.23
38	W10192090		Bracket, Terminal Block				$ 92.91

    View Diagram in Separate Window       Print Part List
