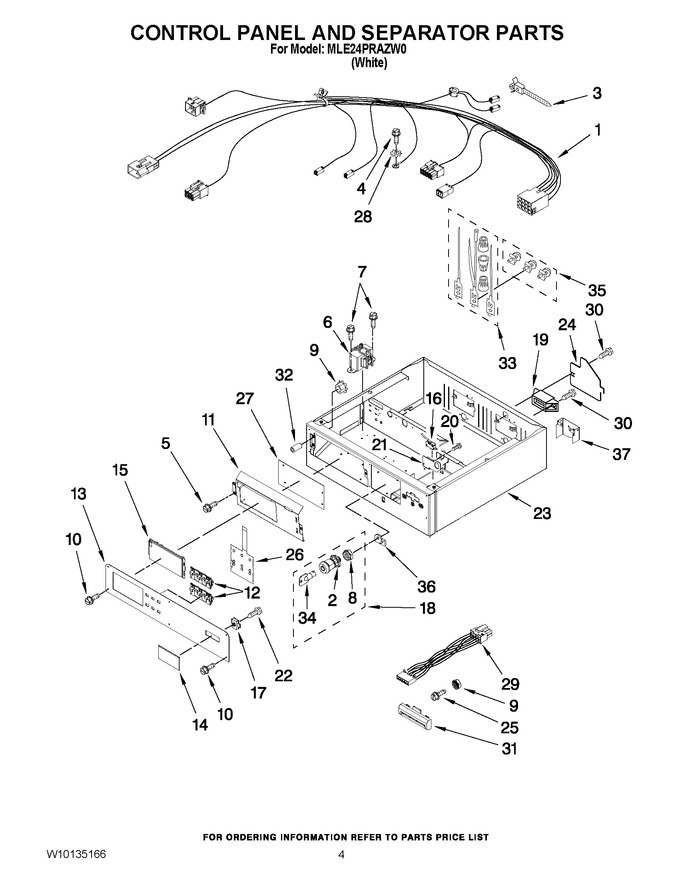

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10169682 | Harness, Collar |
|
$ 277.50 | |||||
| 2 | W11395752 | Hex Nut, 3/4-27 (Replaces: W10139762) |
|
$ 11.74 | |||||
| 3 | WP3391018 | Tie Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 4 | W10850756 | Screw (Replaces: 697776) |
|
$ 6.98 | |||||
| 5 | W10756178 | Screw (Replaces: W10140652) |
|
$ 5.39 | |||||
| 6 | WPW10133285 | Transformer 120vac To 22.5vac (Replaces: W10133285) |
|
$ 184.03 | |||||
| 7 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 8 | WPW10133264 | Hex-nut 9/32 - 28 (Replaces: W10177242) |
|
$ 125.12 | |||||
| 9 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 7.91 | |||||
| 10 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 6.26 | |||||
| 11 | W10163677 | Plate, Control Mounting |
|
- | |||||
| 12 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 18.38 | ||||
| 13 | W10135186 | Facia Console |
|
- | |||||
| 14 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 15 | WPW10133268 | Cover, Display (Replaces: W10133268) |
|
$ 63.37 | |||||
| 16 | WPW10447152 | Switch, Service Access (Replaces: W10133280) |
|
$ 37.08 | |||||
| 17 | W10145157 | Retainer, Facia Cover |
|
- | |||||
| 18 | WPW10133264 | Lock Assembly (Replaces: W10133264) |
|
$ 125.12 | |||||
| 19 | WP9761958 | Terminal-block (Replaces: 9761958) |
|
Immediately | $ 39.72 | ||||
| 20 | 3400408 | Screw |
|
- | |||||
| 21 | W10160652 | Bracket-switch |
|
- | |||||
| 22 | 3400618 | Screw |
|
$ 58.23 | |||||
| 23 | W10165714 | Collar |
|
- | |||||
| 24 | W10684155 | Cover, Terminal Block (Replaces: W10196677) |
|
- | |||||
| 25 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 5.40 | |||||
| 26 | WPW10133278 | Membrane Switch Assembly (Replaces: W10133277) |
|
$ 104.73 | |||||
| 27 | W11392903 | Control Board (Replaces: W10130700) |
|
$ 615.23 | |||||
| 28 | 3390443 | Retainer, Terminal |
|
- | |||||
| 29 | W10133305 | Harness, Card Reader |
|
- | |||||
| 30 | W11676450 | Screw (Replaces: 3400000) |
|
$ 12.65 | |||||
| 31 | W10163036 | Bezel |
|
$ 18.36 | |||||
| 32 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 33 | 279318 | Terminal Brass Tinned (3) (includes Item. 35 ) |
|
Immediately | $ 90.89 | ||||
| 34 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 19.89 | ||||
| 35 | 279393 | Terminal Block Screw Kit (for Terminal Block |
|
Immediately | $ 42.63 | ||||
| 36 | W11165684 | Locking Cam (Replaces: W10133266) |
|
$ 8.20 | |||||
| 37 | W10192090 | Bracket, Terminal Block |
|
$ 92.91 |
