SELECT A DIAGRAM

01 - Control Panel (upper)


02 - Cabinet-front (upper)


03 - Cabinet-front (lower)


04 - Door (upper)


05 - Door (lower)


06 - Cabinet-rear


07 - Tumbler


08 - Gas Valve


09 - Motor Drive


10 - Wiring Information (gas)

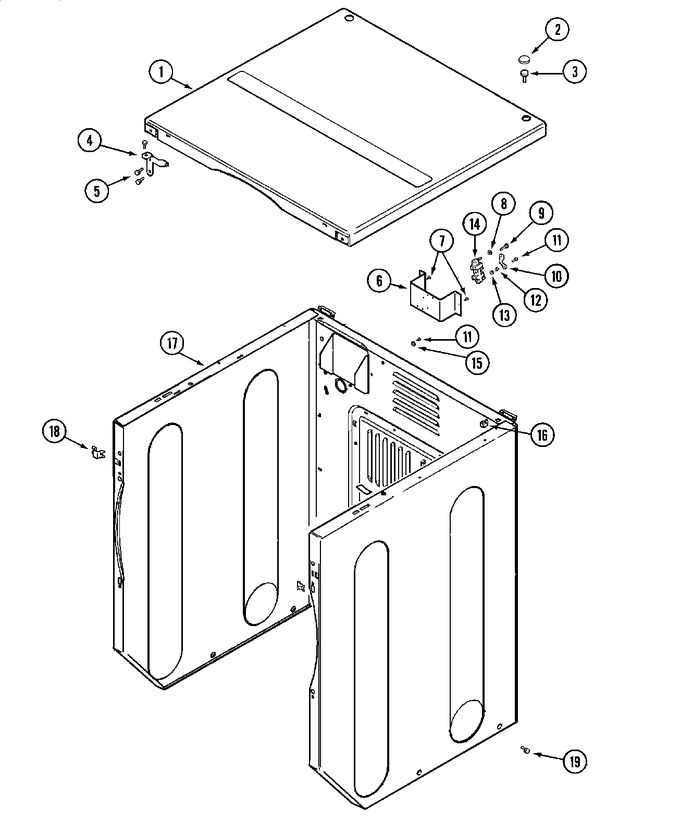

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001995		Cover, Top (wht)	10	Appelez-nous	-
002	33001997		Plug, Hole	10	Appelez-nous	-
003	22001883		Screw, Top Cover	10	Appelez-nous	-
004	33001998		Bracket, Top Cover (lt)	10	Appelez-nous	-
004	33001999		(rt)	10	Appelez-nous	-
005	W11573574		Screw, Top Cover Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
006	NLA		Bracket, Terminal Block----na	10	Appelez-nous	-
007	W11573574		Screw, Terminal Block Bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
008	Y311270		Washer, Terminal Block	10			$ 8.75
009	W11164114		Screw, Terminal Block   (Replaces: Y312209)	10			$ 3.76
010	Y312184		Strap, Ground	10	Appelez-nous	-
011	NLA		Screw, Ground Strap	10	Appelez-nous	-
012	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
013	WP311093		Washer, Brass   (Replaces: 311093)	10			$ 7.25
014	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
015	NLA		Washer, Ground Lug	10	Appelez-nous	-
016	WP22001502		Fastener, U-nut   (Replaces: 22001502)	10			$ 8.26
017	NLA		Cabinet (wht)	10	Appelez-nous	-
018	33001980		Clip, Access Panel	10			$ 7.64
019	213007		Screw, Cabinet	10			$ 10.99

    View Diagram in Separate Window       Print Part List
