SELECT A DIAGRAM

01 - Control Panel (upper)


02 - Control Center (upper)


03 - Cabinet-front (upper)


04 - Cabinet-front (lower)


05 - Door (upper)


06 - Door (lower)


07 - Gas Valve


08 - Motor Drive

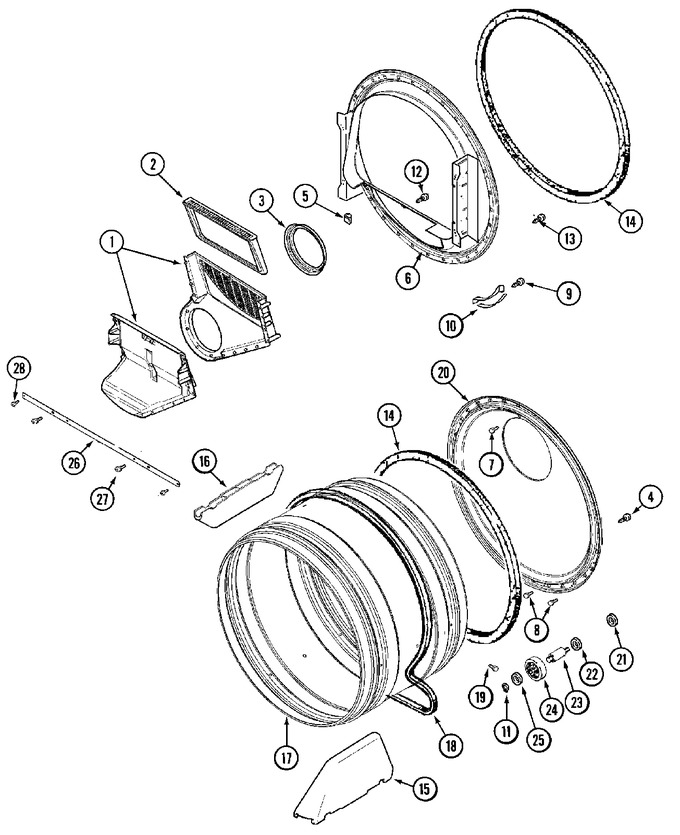

09 - Tumbler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001799		Outlet Duct Assembly	10			$ 81.40
002	WP33001808		Filter, Lint   (Replaces: 33001808)	10		Immediately	$ 54.12
003	33001758		Seal, Blower	10	Appelez-nous	-
004	33002190		Screw (no.10-3/8``)	10	Appelez-nous	-
005	Y310376		Clip, Wire Harness	10	Appelez-nous	-
006	33001802		Front, Tumbler (w/seal) (incl. Sensor/ Light Assy)	10			$ 134.30
007	210932		Screw, Inlet Duct	10	Appelez-nous	-
008	WP489128		Screw, Inlet Duct   (Replaces: 22001996)	10			$ 9.79
009	WP210720		Rivet, Tumbler   (Replaces: 210720)	10			$ 12.14
010	306508		Tumbler Bearing Kit ----w	10		Immediately	$ 20.77
011	WP9703438		Ring, Retaining   (Replaces: 410233)	10		Immediately	$ 3.81
012	NLA		Screw, Outlet Duct (phillips)	10	Appelez-nous	-
013	WP33002917		Screw, Duct To Tumbler (hex)   (Replaces: 33001855)	10		Immediately	$ 6.90
014	WP33001807		Seal, Tumbler   (Replaces: 33001807)	10		Immediately	$ 21.39
015	WP33002032		Baffle (tall)   (Replaces: 33001756)	10		Immediately	$ 37.95
016	WP33001755		Baffle (short)   (Replaces: 33001755)	10		Immediately	$ 30.85
017	33001889		Tumbler	10			$ 325.04
018	WP33002535		Belt, Tumbler   (Replaces: 33001777)	10		Immediately	$ 30.78
019	33001788		Screw, Baffle	10	Appelez-nous	-
020	33001801		Back, Tumbler (w/seal)	10			$ 162.40
021	WP33001443		Nut, Hex (roller Shaft)   (Replaces: 33001443)	10			$ 7.15
022	WP312535		Washer,spring(roller Shaft)--s   (Replaces: Y313347)	10		Immediately	$ 10.25
023	Y312948		Shaft, Tumbler Roller----c	10	Appelez-nous	-
024	12001541		Roller (w/bearing)   (Replaces: Y303373)	10		Immediately	$ 27.92
025	WP312535		Washer, Roller Shaft   (Replaces: 312535)	10		Immediately	$ 10.25
026	33002039		Brace, Tumbler Front	10	Appelez-nous	-
027	33001768		Screw, Brace (no.8)	10	Appelez-nous	-
028	W11573574		Screw, Brace (no.10)   (Replaces: 22001995)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
