01 - Control Panel


02 - Control Center


03 - Cabinet-front (upper)


04 - Cabinet-front (lower)


05 - Door (upper)


06 - Door (lower)


07 - Cabinet-rear


08 - Tumbler


09 - Gas Valve


10 - Motor Drive


11 - Wiring Information

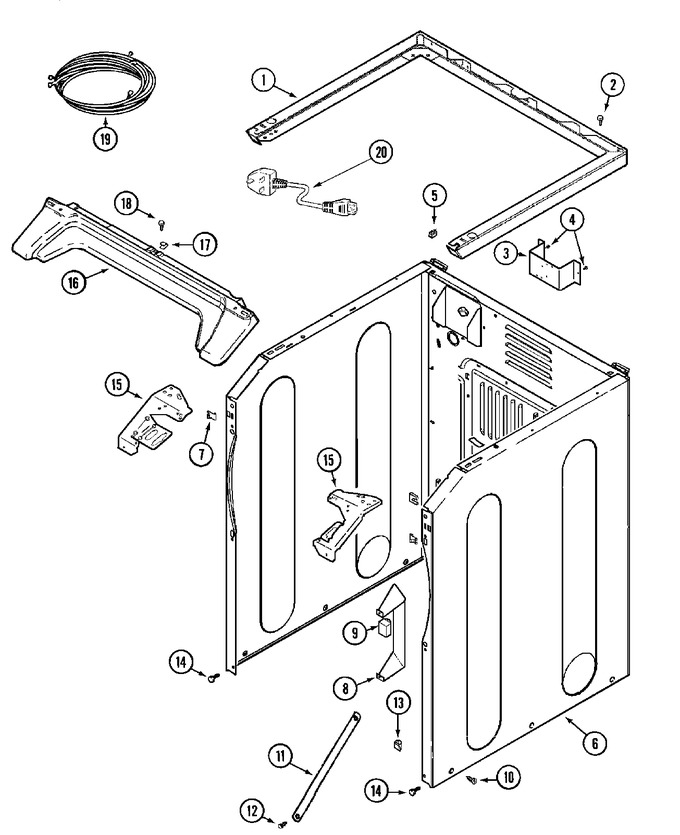

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002005		Support (wht)	10	Appelez-nous	-
002	22001883		Screw, Support	10	Appelez-nous	-
003	NLA		Bracket, Terminal Block----na	10	Appelez-nous	-
004	WP489128		Screw, Bracket To Cabinet   (Replaces: 22003217)	10			$ 9.79
005	WP22001502		Fastener, U-nut   (Replaces: 22001502)	10			$ 8.26
006	22003639		Cabinet Assy. (wht As Pk)	38	Appelez-nous	-
006	NLA		Cabinet (wht)	10	Appelez-nous	-
007	22002049		Clip, Front Panel	10			$ 8.40
008	22003666		Switch, Sensor Assy.	10	Appelez-nous	-
008	314627		Bracket, Switch	10	Appelez-nous	-
008	Y310632		Screw, Switch Bracket	10	Appelez-nous	-
008	Y313561		Screw, Switch Bracket	10			$ 5.27
009	206824		Relay, Spst 24vdc	10	Appelez-nous	-
009	22001866		Screw, Relay	10	Appelez-nous	-
009	306398		Relay, Heater	10			$ 41.78
009	WP3177991		Screw, Relay   (Replaces: Y251119)	10		Immediately	$ 6.47
010	213007		Screw, Cabinet	10			$ 10.99
010	213007		Screw, Cabinet   (Replaces: 22003409)	36			$ 10.99
011	22002767		Brace, Cross	10	Appelez-nous	-
012	W11573574		Screw, Cross Brace   (Replaces: 22001995)	10		Immediately	$ 12.62
013	Y310376		Clip, Wire Harness	10	Appelez-nous	-
014	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
015	33002474		Bracket, Corner (lt)	10	Appelez-nous	-
015	NLA		Bracket, Corner (rt)	10	Appelez-nous	-
016	33002011		Cover, Access (wht)	10	Appelez-nous	-
016	33002014		Brace, Top Cross	10	Appelez-nous	-
017	33002013		Fastener, Access Cover	10	Appelez-nous	-
018	W11573574		Screw, Access Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
019	22002179		Tie, Cable	10	Appelez-nous	-
019	22003671		Harness, Wire (export-lwr)	10	Appelez-nous	-
019	22003673		Harness, Wire (export-lwr)	10	Appelez-nous	-
020	33002107		Adaptor, Gas Connection	10	Appelez-nous	-
021	WP3400094		Screw No.10-32 X 3/8   (Replaces: 33002442)	10			$ 7.14
021	33002511		Cord, Power	10	Appelez-nous	-
