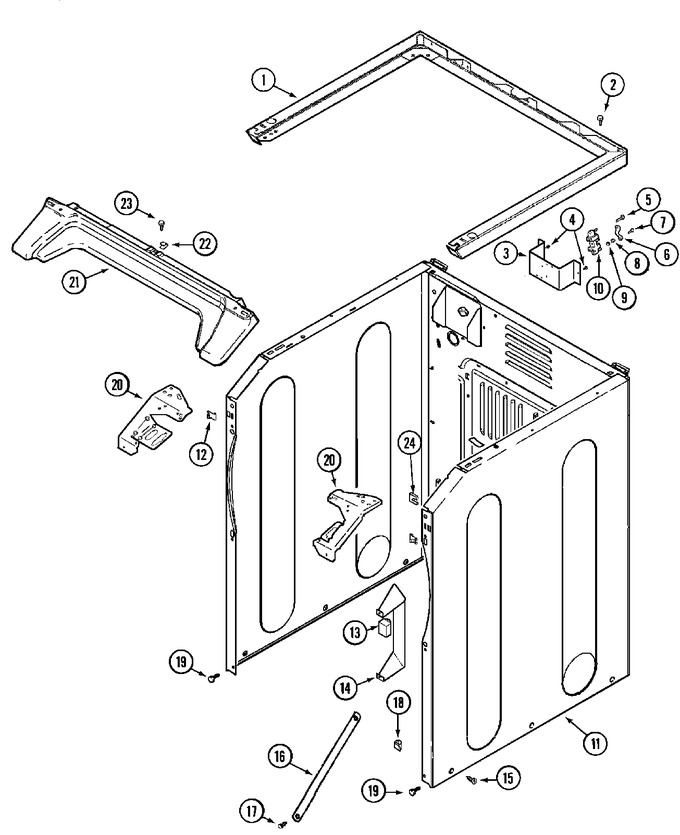

SELECT A DIAGRAM

01 - Control Panel (upper)


02 - Cabinet-front (upper)


03 - Cabinet-front (lower)


04 - Door (upper)


05 - Door (lower)


06 - Cabinet-rear


07 - Tumbler


08 - Gas Valve


09 - Motor Drive


10 - Wiring Information (mlg15praw)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002005		Support (wht)	10	Appelez-nous	-
002	22001883		Screw, Support	10	Appelez-nous	-
003	315471		Retainer, Wire	10	Appelez-nous	-
003	NLA		Bracket, Terminal Block----na	10	Appelez-nous	-
004	W11573574		Screw, Terminal Block   (Replaces: 22001995)	10		Immediately	$ 12.62
005	W11164114		Screw, Terminal Block   (Replaces: Y312209)	10			$ 3.76
006	Y312184		Strap, Ground	10	Appelez-nous	-
007	NLA		Screw, Ground Strap	10	Appelez-nous	-
008	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
009	WP311093		Washer, Brass   (Replaces: 311093)	10			$ 7.25
010	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
011	W11573574		Screw, V-bracket   (Replaces: 22001995)	10		Immediately	$ 12.62
011	22002381		V-bracket	10	Appelez-nous	-
011	22002382		Fastener, V-bracket	10	Appelez-nous	-
011	22003639		Cabinet Assy. (wht As Pk)	38	Appelez-nous	-
011	33002626		Cabinet, Assy. (wht-as Pk)	36	Appelez-nous	-
011	NLA		Cabinet (wht)	10	Appelez-nous	-
012	22002049		Clip, Front Panel	10			$ 8.40
013	WP3177991		Screw, Relay   (Replaces: 22001078)	10		Immediately	$ 6.47
013	306199		Relay, Heater	10			$ 42.40
013	306398		Relay, Heater	10			$ 41.78
014	314627		Bracket, Relay	10	Appelez-nous	-
015	213007		Screw, Cabinet	10			$ 10.99
015	213007		Screw, Cabinet (truss)   (Replaces: 22003409)	36			$ 10.99
016	22002259		Brace, Cross	10	Appelez-nous	-
017	W11573574		Screw, Cross Brace   (Replaces: 22001995)	10		Immediately	$ 12.62
018	Y310376		Clip, Wire Harness	10	Appelez-nous	-
019	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
020	33002009		Bracket, Corner (lt)	10	Appelez-nous	-
020	33002010		(rt)	10	Appelez-nous	-
020	33002095		Bracket, Corner (lt)	10	Appelez-nous	-
020	33002096		(rt)	10	Appelez-nous	-
021	33002011		Cover, Access (wht)	10	Appelez-nous	-
022	33002013		Fastener, Access Cover	10	Appelez-nous	-
023	W11573574		Screw, Access Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
024	213280		Fastener, Front Panel	10	Appelez-nous	-
025	33002268		Wire Harness, Main (lwr)	10	Appelez-nous	-
025	33002274		Wire Harness, Main (lwr)	10	Appelez-nous	-
025	NLA		Wire Harness, Main (lwr)----na	10	Appelez-nous	-
026	33001989		Retainer, Wire Harness	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
