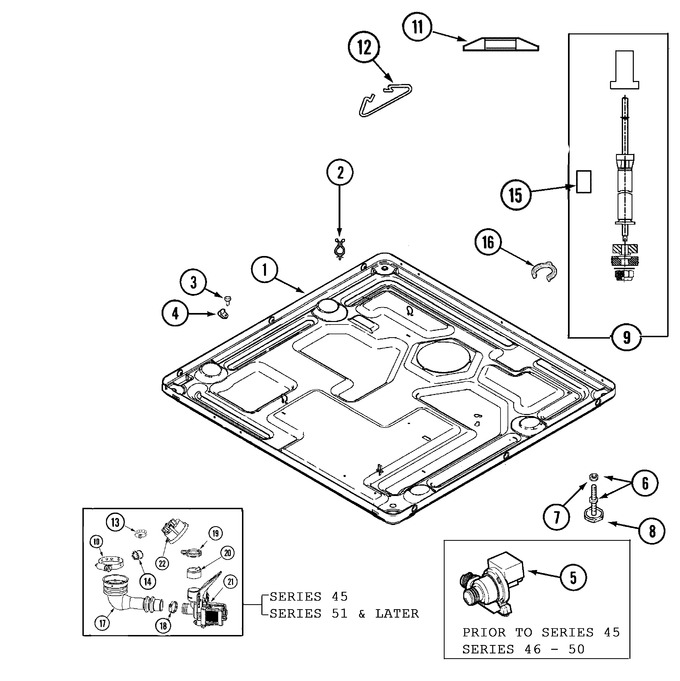

Diagram #	Part Number	Description	Series	Availability	Ships	Price
001	213007	Screw, Cabinet To Base	38			$ 10.99
001	22003435	Base (Replaces: 22002240)	10			$ 309.12
001	22003580	Base, Assembly	36	Appelez-nous	-
001	22003605	Base Weld Assembly	38	Appelez-nous	-
002	315471	Retainer, Wire	10	Appelez-nous	-
002	33001989	Retainer, Wire	10	Appelez-nous	-
003	Y313561	Screw, Wire Harness Clip	10			$ 5.27
004	WP308605	Clip, Wire Harness (Replaces: 22002014)	10			$ 10.08
005	22002809	Pump (50hz)	10	Appelez-nous	-
005	22003709	Pump,drain (50hz)	45	Appelez-nous	-
006	WP8563585	Adjustable Leg & Nut (Replaces: 22001915)	10		Immediately	$ 13.28
007	WP62739	Nut, Leg (Replaces: Y052740)	10			$ 6.85
008	WP210684	Foot, Rubber (Replaces: 210684)	10		Immediately	$ 14.09
009	22001988	Strut Assy-rear	10			$ 200.90
010	WP696392	Clamp, Sump Hose (Replaces: 22002053)	45			$ 7.31
011	33002222	Deflector, Water (on Left Strut Only)	10	Appelez-nous	-
013	WP285655	Clamp, Hose Double Wire (Replaces: 22003295)	45		Immediately	$ 7.55
014	22003261	Plug, Outer Tub	45	Appelez-nous	-
015	33002224	Sleeving, Braided	10	Appelez-nous	-
016	WP285655	Clamp, Hose (Replaces: 22002853)	10		Immediately	$ 7.55
017	22003262	Hose, Tub To Pump	45			$ 27.27
018	WP285655	Clamp, Drain Hose (Replaces: 22001984)	45		Immediately	$ 7.55
019	WP285655	Clamp, Hose (Replaces: 22002853)	45		Immediately	$ 7.55
020	22003268	Cap, Rubber	45			$ 26.61
021	22003709	Pump,drain (50hz)	45	Appelez-nous	-
021	NLA	Bag, Plastic W/drawstring	45	Appelez-nous	-
022	22003728	Switch, Pressure	45			$ 118.47
