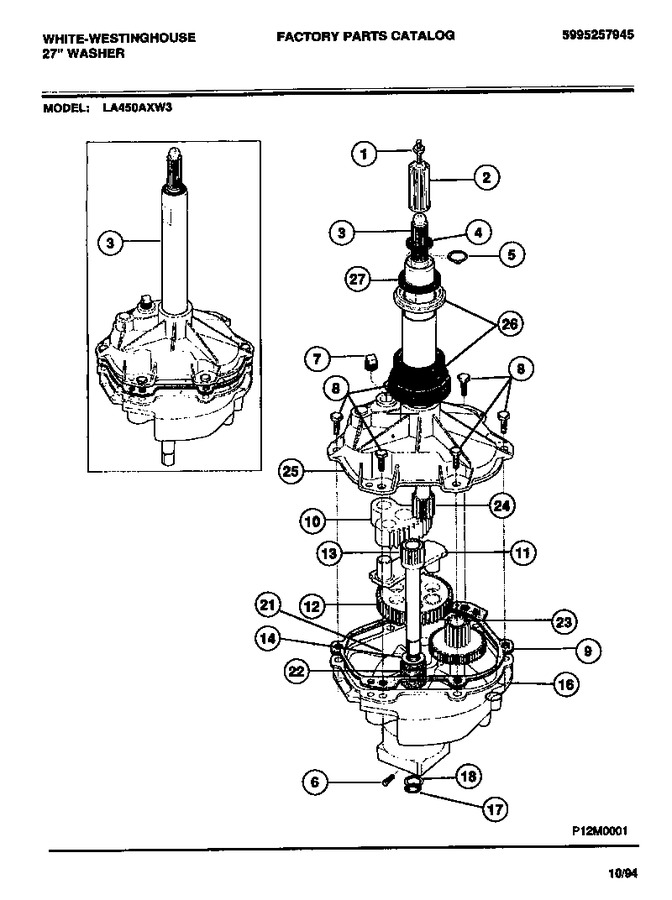

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131206800 | Stud Cap |
|
$ 48.20 | |||||
| 2 | 5303306139 | Drive Hub |
|
- | |||||
| 3 | 134735700 | Transmission Complete (Replaces: 131349200) |
|
$ 820.03 | |||||
| 4 | 5303161307 | Seal-upper, Lip |
|
Immediately | $ 21.27 | ||||
| 5 | 5303161223 | Retaining Ring |
|
$ 10.24 | |||||
| 6 | 131346600 | Screw |
|
- | |||||
| 7 | 5303161224 | Pipe Plug |
|
- | |||||
| 8 | 08002804 | Screw |
|
- | |||||
| 9 | 5308015778 | Gasket |
|
$ 33.18 | |||||
| 10 | 5308011268 | Gear-sector |
|
- | |||||
| 11 | 5303161169 | Rod-connecting |
|
- | |||||
| 12 | 5308015496 | Gear-crank |
|
- | |||||
| 13 | 5308014905 | Shaft-lower |
|
- | |||||
| 14 | 5303161226 | Washer-thrust |
|
- | |||||
| 16 | 131362000 | Housing-lower |
|
- | |||||
| 17 | 5303161223 | Retaining Ring |
|
$ 10.24 | |||||
| 18 | 5308002475 | Spacer Washer |
|
- | |||||
| 21 | 131375001 | Oil-transmission (1 Qt) |
|
- | |||||
| 22 | 131375100 | Spring - Small L.g.s |
|
- | |||||
| 23 | 5303161175 | Gear-idler |
|
- | |||||
| 24 | 5308015507 | Shaft-agitator |
|
- | |||||
| 25 | 5303206931 | Housing-upper |
|
- | |||||
| 26 | 5303279394 | Seal-tub |
|
$ 85.72 | |||||
| 27 | 5303161232 | Thrust Washer |
|
- |
