| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 001 |
MAL9000AXX |
 |
Convers.kit (nat To Lp)----s (Replaces: Y306195) |
11 |
|
|
$ 72.26 |
|
|
| 002 |
Y308377 |
|
Conversion Kit (lp To Natural) |
11 |
Appelez-nous
|
- |
|
|
|
| 003 |
304971 |
|
Screw, Igniter |
11 |
Appelez-nous
|
- |
|
|
|
| 004 |
WP33002789 |
 |
Igniter Assembly (Replaces: 33002789) |
11 |
|
Immediately |
$ 80.85 |
|
|
| 005 |
WP33002793 |
 |
Burner Assembly (Replaces: 33002793) |
11 |
|
|
$ 161.35 |
|
|
| 006 |
307927 |
|
Gas Valve - 120v-50hz |
11 |
|
|
$ 215.29 |
|
|
| 007 |
58804A |
 |
Coil, Holding & Booster--w (Replaces: 306106) |
11 |
|
Immediately |
$ 28.02 |
|
|
| 008 |
279834 |
 |
Coil, Secondary--w (Replaces: 306105) |
11 |
|
Immediately |
$ 29.57 |
|
|
| 009 |
Y313561 |
|
Screw, Gas Valve |
11 |
|
|
$ 5.27 |
|
|
| 010 |
NLA |
|
Bracket, Gas Valve----na |
11 |
Appelez-nous
|
- |
|
|
|
| 011 |
WP90767 |
 |
Screw, Gas Valve (Replaces: 314082) |
11 |
|
Immediately |
$ 7.04 |
|
|
| 012 |
W11573574 |
 |
Screw, Gas Valve (Replaces: 22001995) |
11 |
|
Immediately |
$ 12.62 |
|
|
| 013 |
306086 |
|
Angle Shut Off For Gas Valv |
11 |
Appelez-nous
|
- |
|
|
|
| 014 |
33001735 |
|
Pipe & Bracket Assy. |
11 |
Appelez-nous
|
- |
|
|
|
| 015 |
WP90767 |
|
Screw, Duct (Replaces: 211294) |
11 |
|
Immediately |
$ 7.04 |
|
|
| 016 |
33002765 |
|
Inlet Duct Assembly (gas) |
11 |
Appelez-nous
|
- |
|
|
|
| 016 |
33003039 |
|
Assy,inlet Duct-gas |
17 |
Appelez-nous
|
- |
|
|
|
| 017 |
WP305169 |
 |
Thermostat, Hi-limit Gas (Replaces: 305169) |
11 |
|
|
$ 117.03 |
|
|
| 018 |
WP338906 |
 |
Sensor, Radiant (Replaces: Y303377) |
11 |
|
Immediately |
$ 46.72 |
|
|
| 019 |
33001835 |
|
Cone Assy., Combustion |
11 |
Appelez-nous
|
- |
|
|
|
| 020 |
NLA |
|
Extension F/combustion Cone |
11 |
Appelez-nous
|
- |
|
|
|
| 021 |
Y312890 |
|
Retainer, Heater Chamber |
11 |
Appelez-nous
|
- |
|
|
|
| 022 |
33001693 |
|
Cap, Gas Pipe |
11 |
Appelez-nous
|
- |
|
|
|
| 023 |
3406051 |
 |
Connector, Angle (Replaces: 33001842) |
11 |
|
|
$ 90.15 |
|
|

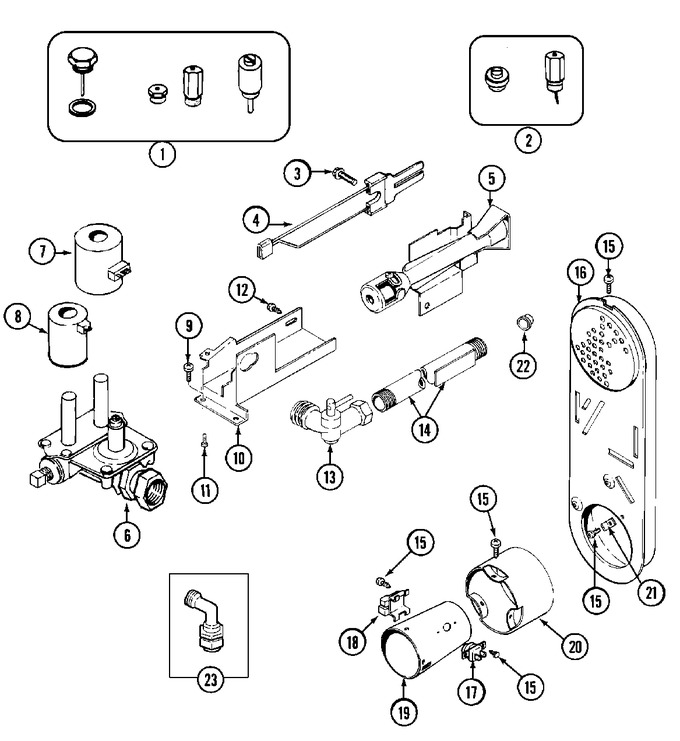

View Diagram in Separate Window
